Kia Cee'd: Parking Brake System / Electronic Parking Brake (EPB) Components and components location

Kia Cee'd JD Service Manual / Brake System / Parking Brake System / Electronic Parking Brake (EPB) Components and components location

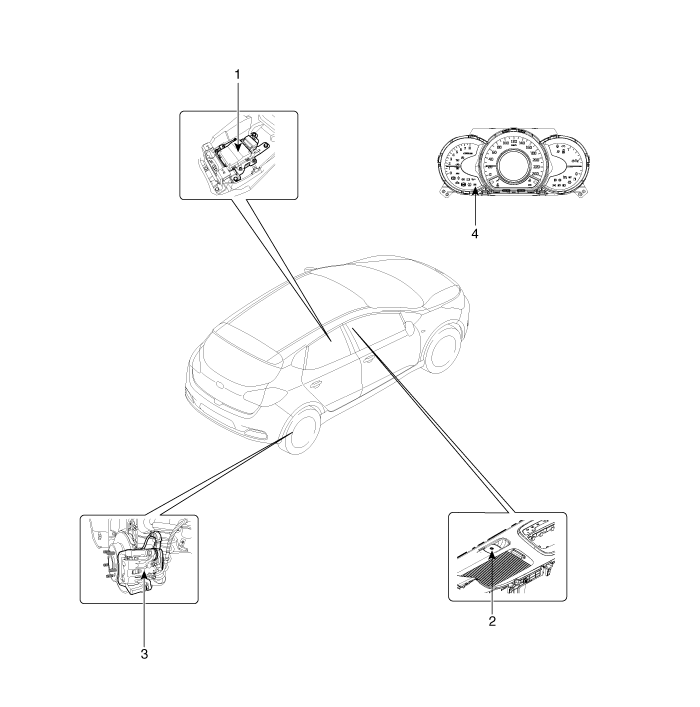

Components

1. EPB Unit
2. EPB Switch

3. Brake Caliper
4. EPB Warning Lamp
