Kia Cee'd: Trip computer / Elapsed time

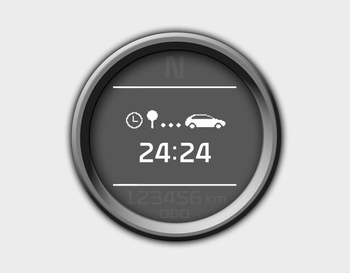

This mode indicates the total time traveled since the last driving time reset.
Even if the vehicle is not in motion, the driving time keeps going while the engine is running.
The meter’s working range is from 0:00~99:59.
Pressing the
button for more
than 1
second, when the driving time is being
displayed, clears the driving time to zero
(0:00).
Average speed (km/h or MPH)
This mode calculates the average speed
of the vehicle since the last average
speed reset.
Even if the vehicle is not in motion, the
average speed keeps going while the
engine is running.
P ...
Service mode
This mode calculates when you need a
scheduled maintenance service (mileage
or days)
If you want to see the service mode when
other modes are displayed, press the ▲
or ▼ button less tha ...
