Kia Cee'd: Interior Trim / Door Scuff Trim Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim Components and components location

Component Location

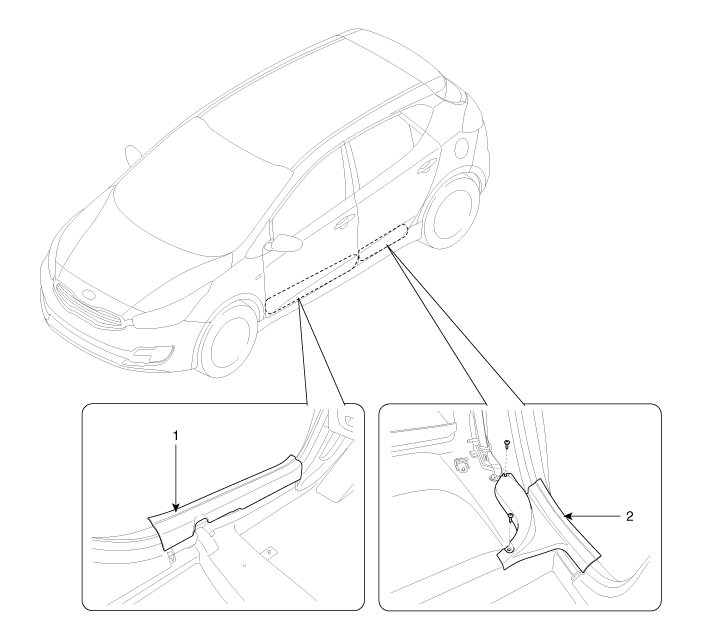

[5Door]


1. Front door scuff trim
2. Rear door scuff trim

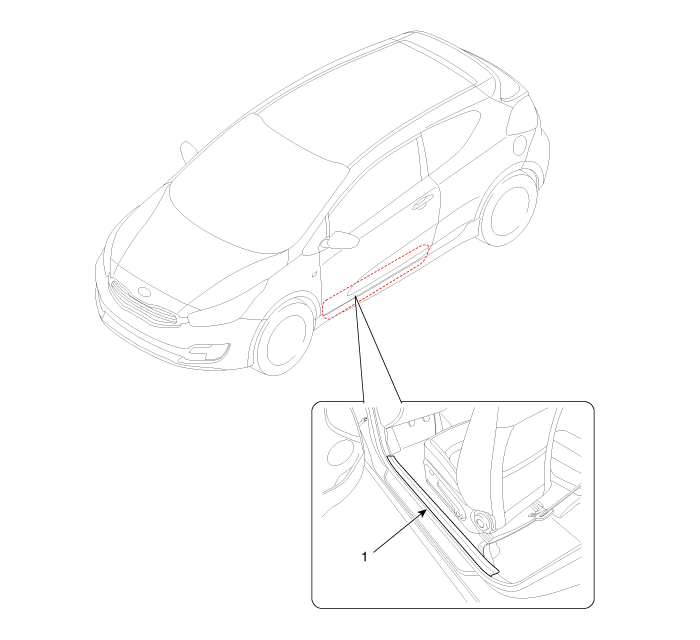

[3Door]


1. Front door scuff trim


Components and components location
Components (1) [5Door]   1. Front pillar trim 2. Cowl side trim [LH] 3. Cowl side trim [RH] 4. Center pillar upper trim 5. Center pillar lo ...

Door Scuff Trim Repair procedures
Replacement [5Door]    • Put on gloves to protect your hands. ...
