| Description |
| 1. |

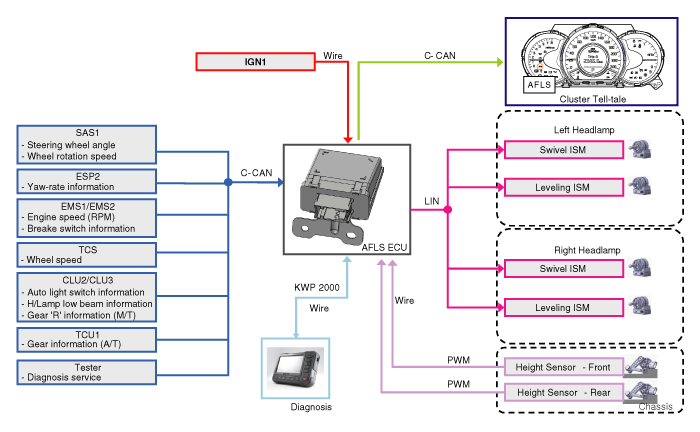

Input part : It is provided that information of speed sensor, height
sensor and so on related to condition of vehicle.
|
| 2. |
Control part (AFLS Unit) : It controls Output part by analyzing/judging
Input signal.
|
| 3. |
Output part : It drive Low beam of H/Lamp to upper/lower and left/right
side optimum beam pattern according to output control signal of AFLS
Unit.
|
|
|
Content |
Description |
||||||||
|
1 |
Dynamic bending (Swivelling) |
|
||||||||
|
2 |
Automatic leveling (Leveling) |
|
||||||||
|
3 |
Fail-safe |
|
|
|
Content |
Description |
||||||||
|
1 |
Enhanced stability |
|
||||||||
|
2 |
Enhanced convenience |
|

| Operation |
| [LHD] |

| [RHD] |

| 1. |
General
System initialization, In case of input Engine signal (AFLS ECU, Levelling
/Swivelling motor)
AFLS operate normally ,only under turning auto light switch on.
Providing Tel-tale function of AFLS (display ‘AFLS’ on dashboard).
In case of system failure, display light on ‘AFLS’ on dashboard
|
| 2. |
Main function
Swivelling function
Levelling function
Processing signal of Height sensor
Control the shield drum to change the beam pattern
Control the static bending light
|

| 1. |
General
communicate AFLS Unit through LIN protocol
Robust control to Disturbance
Doesn't work out of rated voltage range.
|
| 2. |
Main function & Rating
Drive Low beam to left / right side
Fail-safe function : In case of detecting malfunction or system failure
, drive to secure position
|

| 1. |
Main spec
communicate AFLS Unit through LIN protocol
Robust control to Disturbance
Doesn't work out of rated voltage range.
|
| 2. |
Main function & Rating
Drive Low beam to upper / lower
Fail-safe function : In case of detecting malfunction or system failure
, drive to secure position
|

| 1. |
General
Height Sensor connecting body & suspension measures inclination information
from load condition.
Vehicle having the Steel-suspension system transmits inclination signal
to AFLS ECU by using Hard-wire.
|
| 2. |
Rating
Rated Voltage : 5V ± 5%
|
Components and components location
