Kia Cee'd: Cylinder Head Assembly / Cylinder Head Cover Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Cover Components and components location

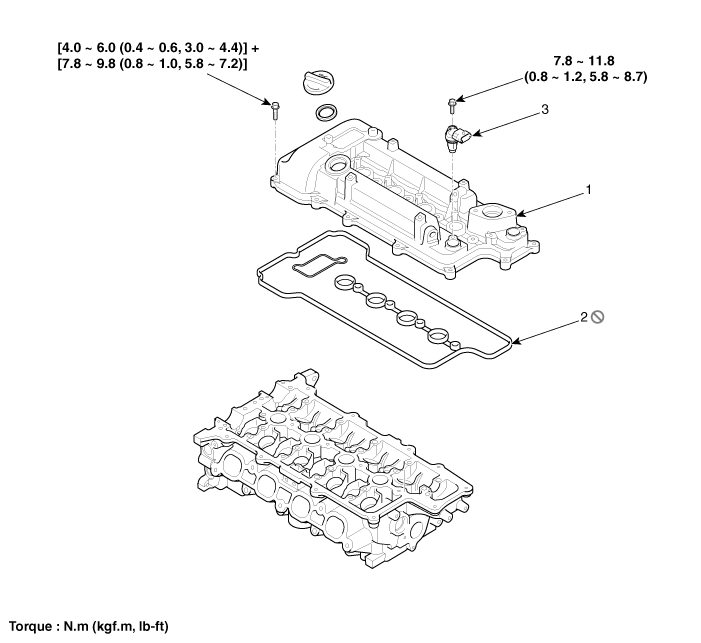

Components


1. Cylinder head cover
2. Cylinder head cover gasket
3. Cam position sensor
