Kia Cee'd: Cylinder Head Assembly / Cylinder Head Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and components location

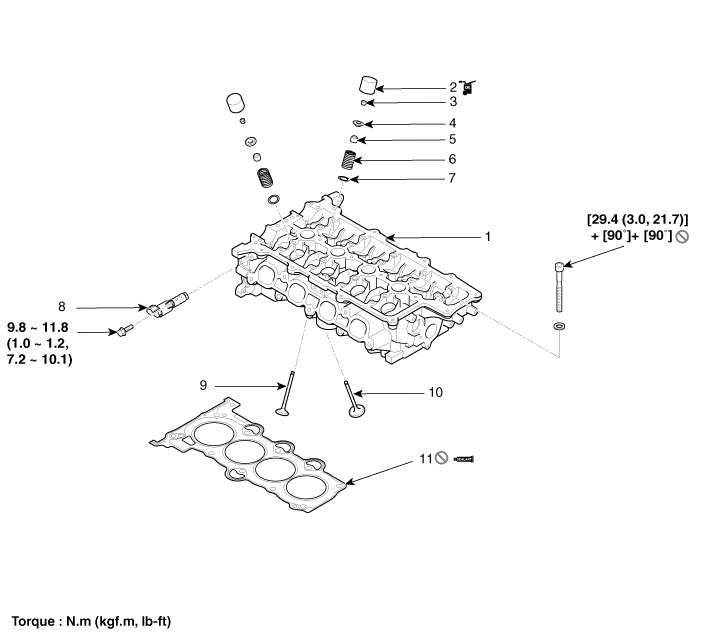

Components


1. Cylinder head assembly
2. MLA
3. Retainer lock
4. Retainer
5. Valve stem seal
6. Valve spring
7. Valve spring seat
8. OCV (Oil Control Valve)
9. Exhaust valve
10. Intake valve
11. Cylinder head gasket

Camshaft Repair procedures
Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Remove the ti ...

Cylinder Head Repair procedures
Removal Engine removal is not required for this procedure.    • Use fender covers t ...
