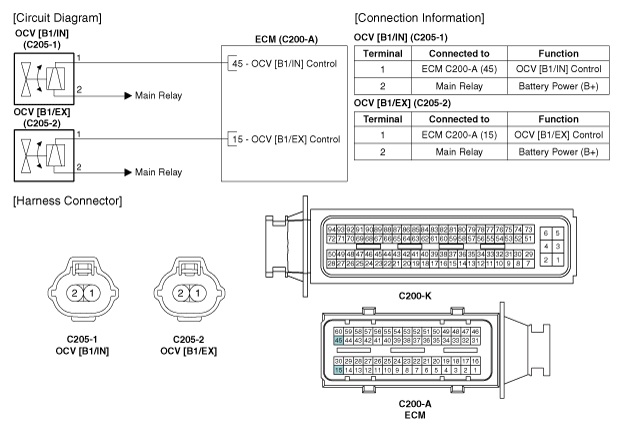

Kia Cee'd: Engine Control System / CVVT Oil Control Valve (OCV) Schematic diagrams

CVVT Oil Control Valve (OCV) Specifications

Specification   Item Specification Coil Resistance (Ω) 6.9 ~ 7.9 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance betwee ...
