Kia Cee'd: Cylinder Head Assembly / CVVT & Camshaft Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Head Assembly / CVVT & Camshaft Components and components location

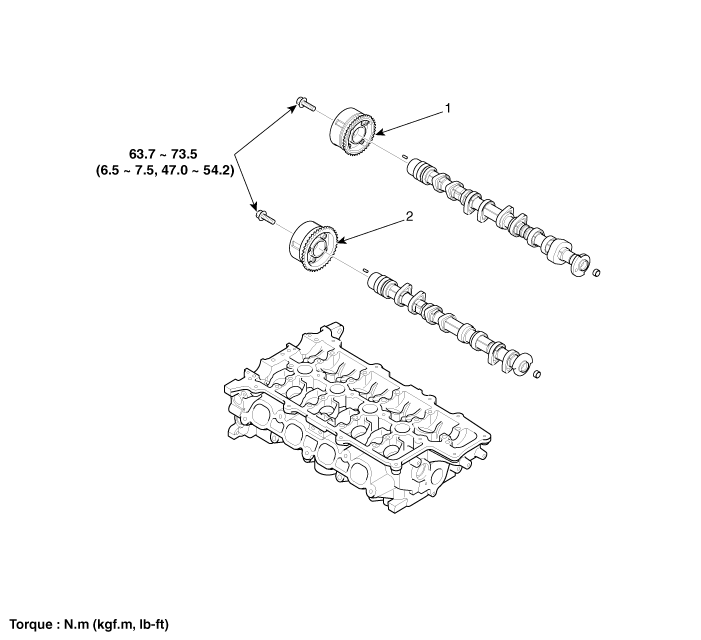

Components

1. Exhaust CVVT
2. Intake CVVT

Cylinder Head Cover Repair procedures

Removal 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the intake ...

CVVT & Camshaft Description and operation

Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is ...
