Kia Cee'd: Cruise Control System / Cruise Control Switch Schematic diagrams

Kia Cee'd JD Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch Schematic diagrams

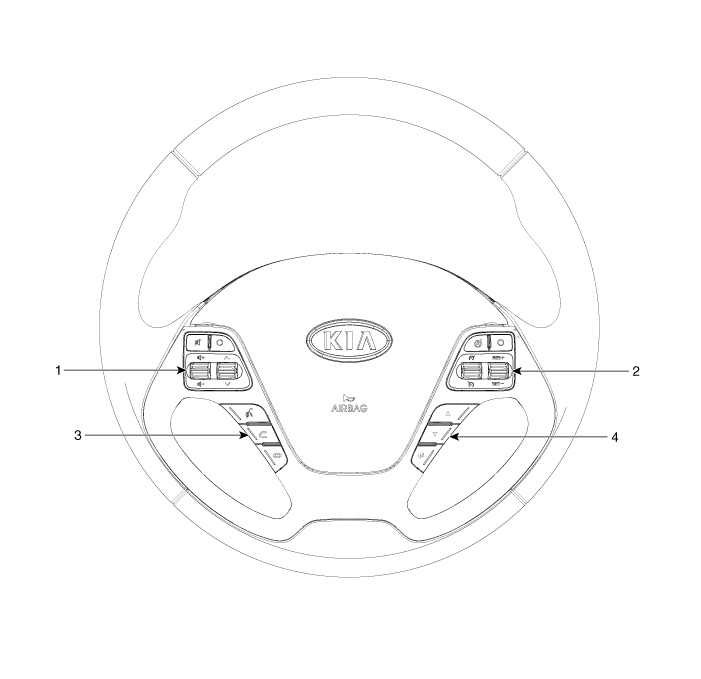

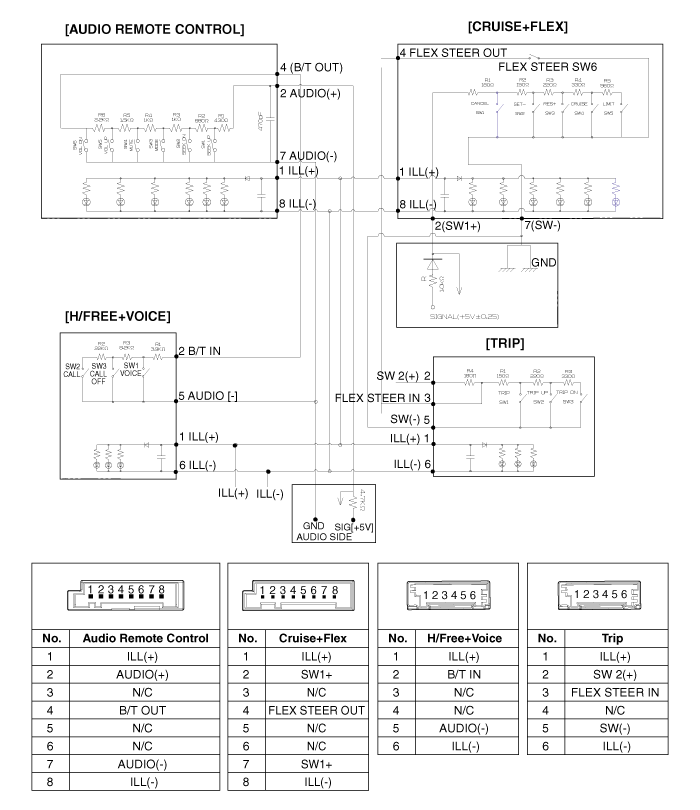

Circuit Diagram


1. Remote control switch (Audio)
2. Remote control switch (Cruise)
3. Blue tooth hands free switch
4. Trip switch

Troubleshooting
Trouble Symptom Charts Trouble Symptom 1 Trouble Symptom 2   Trouble symptom Probable cause Remedy ...

Cruise Control Switch Repair procedures
Removal 1. Disconnect the battery (-) terminal. 2. Remove the air-bag module from the steering wheel. (Refer to Restraint - " ...
