Kia Cee'd: Engine Control System / Crankshaft Position Sensor (CKPS) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Schematic diagrams

Circuit Diagram

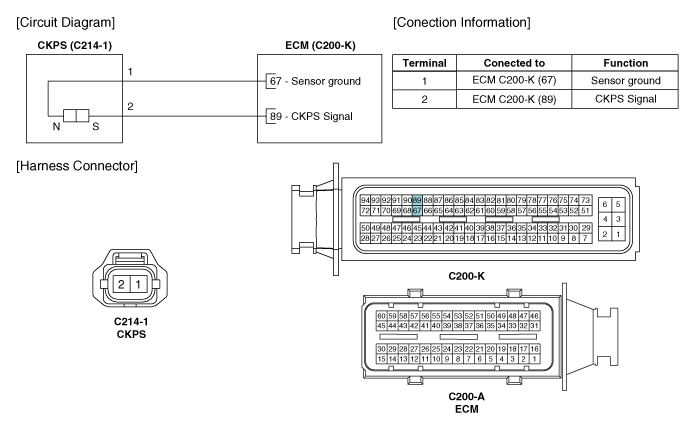

[NON-ISG]

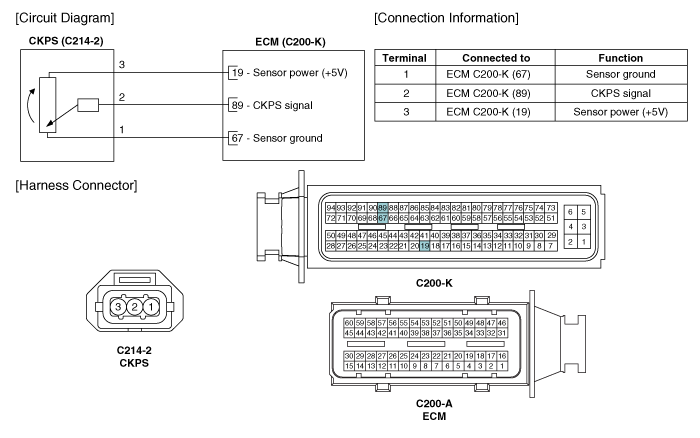

[ISG]

Crankshaft Position Sensor (CKPS) Troubleshooting
Signal Waveform [NON-ISG] This example shows a typical Crankshaft Position Sensor(CkPS) and Camshaft Position Sensor(CMPS) waveform at idle.The PCM controls the ...

Crankshaft Position Sensor (CKPS) Repair procedures
Inspection 1. Check signal waveform of CKPS and CMPS using a GDS. Specification: Refer to “Waveform” R ...
