Kia Cee'd: Timing System / Crankshaft Damper Pulley Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Timing System / Crankshaft Damper Pulley Components and components location

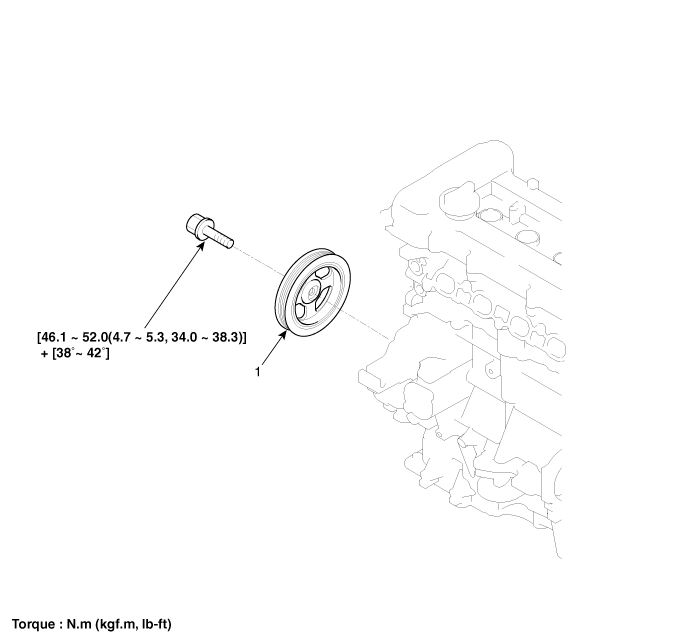

Components

1. Crankshaft damper pulley
