Kia Cee'd: Cooling System / Cooling Fan Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Components and components location

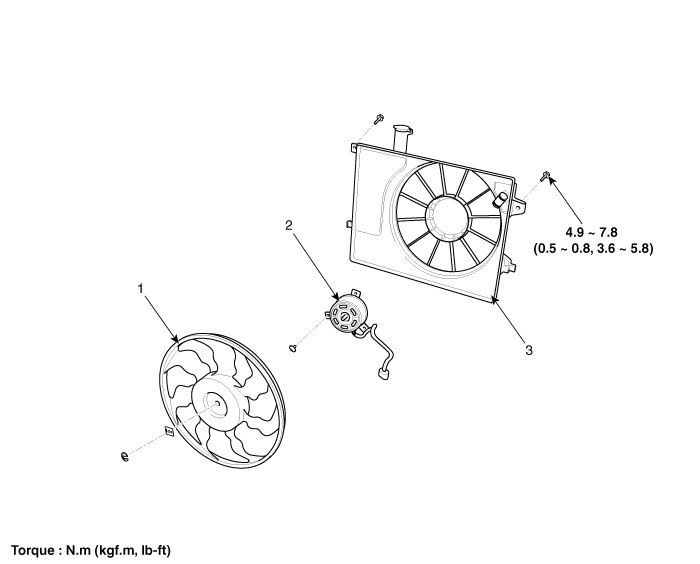

Components

1. Cooling fan
2. Fan motor

3. Fan shroud
