Kia Cee'd: Manual Transaxle Control System / Control Cable Components and components location

Kia Cee'd JD Service Manual / Manual Transaxle System / Manual Transaxle Control System / Control Cable Components and components location

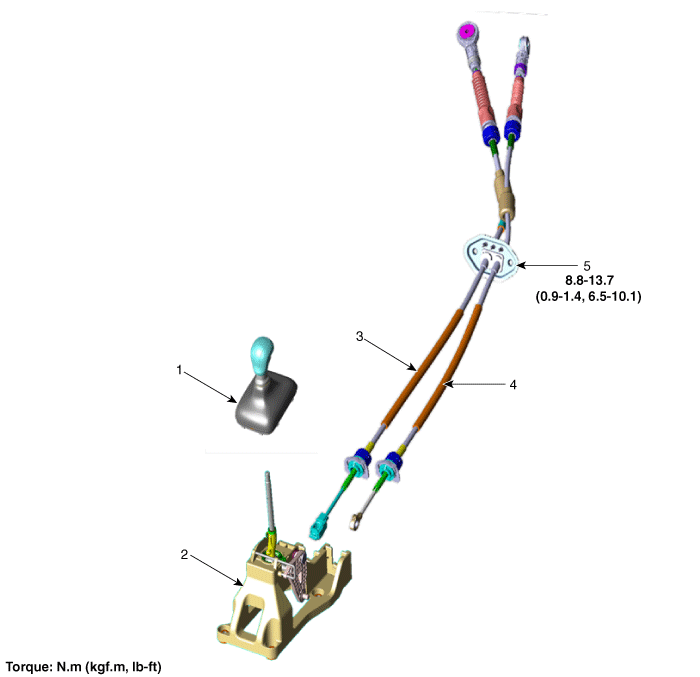

Components


1. Knob & Boots
2. Shift lever assembly
3. Shift cable
4. Select cable
5. Control cable retainer

Shift Lever Repair procedures
Removal 1. Disconnect the battery negative (-) cable. 2. Remove the gear boots (A) and then remove the shift lever knob (B) by rota ...

Control Cable Repair procedures
Removal 1. Move the shift lever to 4th gear. 2. Remove the air duct and the air cleaner assembly. (Refer to Engine Mechanical S ...
