Press the key - Select

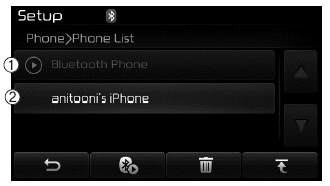

[Phone] - Select [Paired Phone List]
(1) Connected Phone : Device that is currently connected
(2) Paired Phone : Device that is paired but not connected
From the paired phone list, select the
device you want to connect and
press the button.
