Components

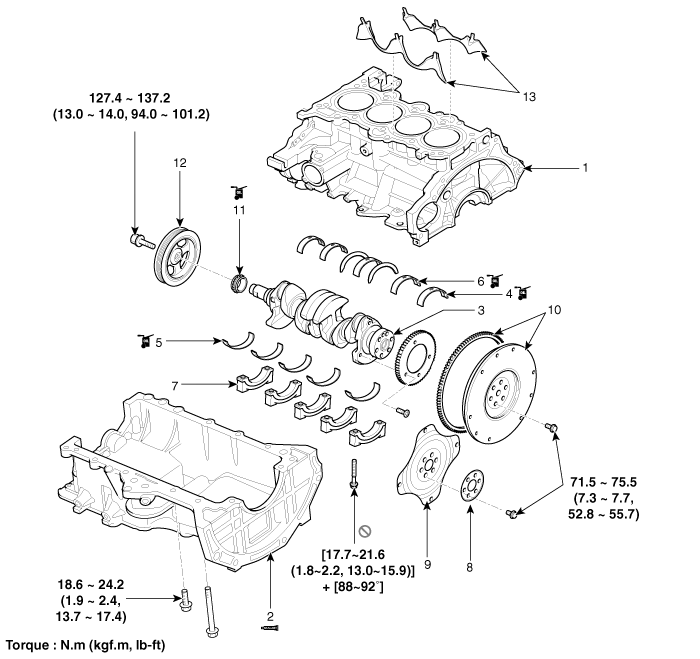

1. Cylinder block
2. Ladder frame
3. Crankshaft
4. Crankshaft upper bearing
5. Crankshaft lower bearing
6. Thrust bearing
7. Main bearing cap
8. Adapter plate
9. Drive plate
10. Fly wheel
11. Crankshaft sproket
12. Crankshaft pulley
13. Water jacket insert

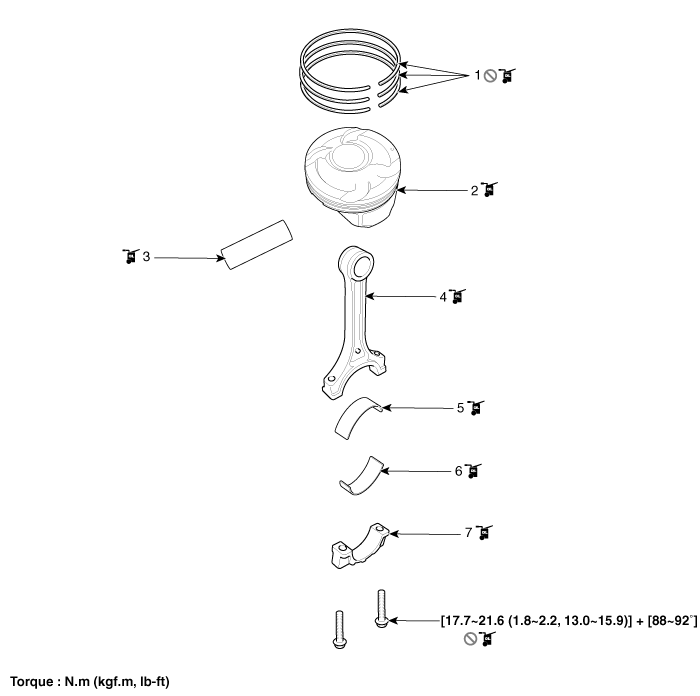

1. Piston ring
2. Piston
3. Piston pin
4. Connecting rod
5. Connecting rod upper bearing
6. Connecting rod lower bearing
7. Connecting rod bearing cap

Cylinder Block
...

External Damper Flywheel Components and components location
Components   1. External damper flywheel ...
