Kia Cee'd: Engine Room Under Cover / Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Engine Room Under Cover / Components and components location

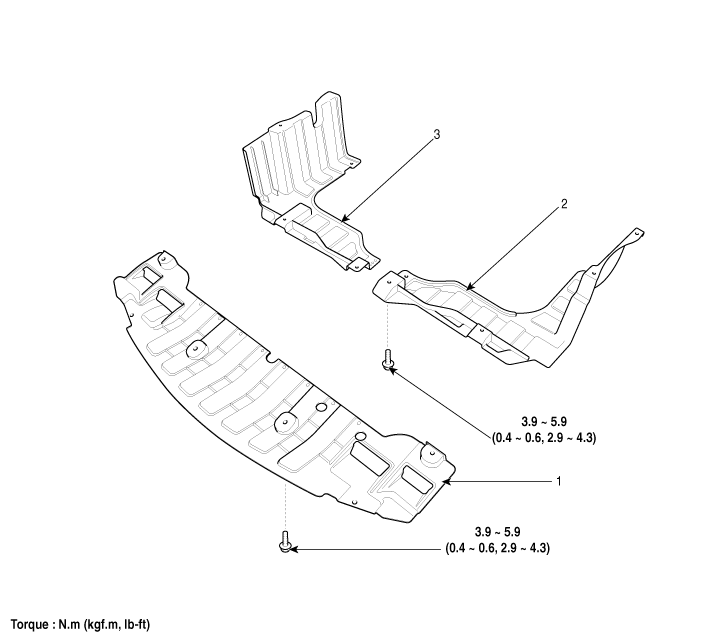

Components

1. Under cover front pannel.
2. Engine room LH under cover

3. Engine room RH under cover

Repair procedures

Removal and Installation 1. Remove the engine room under cover (A). Tightening torque: 3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3 ...
