Kia Cee'd: Emergency Call System / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Emergency Call System / Components and components location

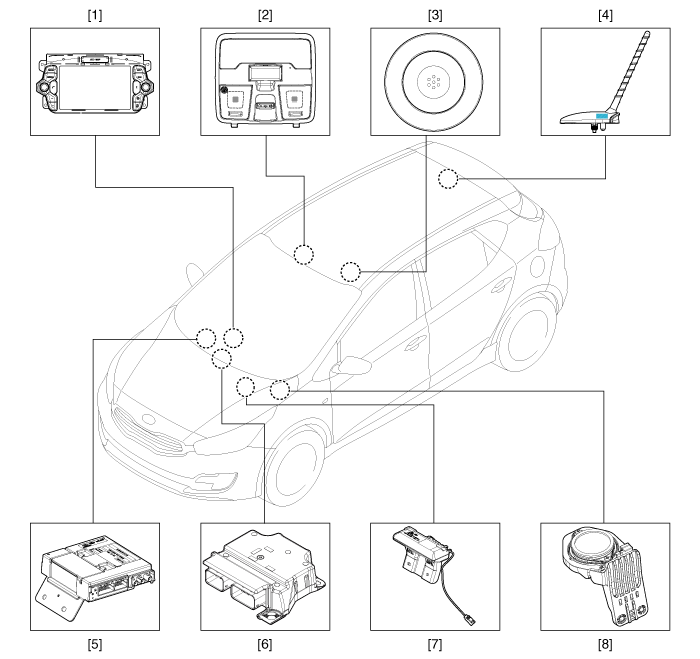

Components

1. Head unit (AVN, Audio)
2. Emergency call system button
3. Emergency call system MIC
4. Roof antenna

5. Emergency call unit
6. Supplemental Restraint System Control Module (SRSCM)
7. Emergency call crash pad antenna
8. Emergency call speaker

Description and operation

Description Emergency Call (eCall) When an accident occurs or the user's request is detected, it notifies the call center of the vehicle status using the wireless network so ...
