Kia Cee'd JD Service Manual / Body Electrical System / Lane Departure Warning System (LDWS) / Components and components location

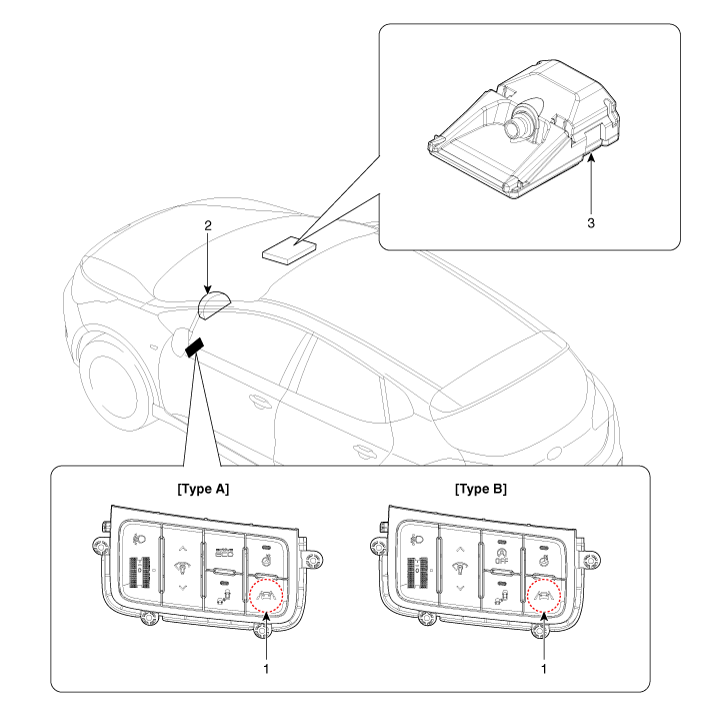

Components

1. LDWS ON/OFF switch
2. Instrument cluster

3. LDWS unit

Lane Departure Warning System (LDWS)

...

Description and operation

Description Block Diagram LDWS is composed of below units No Item Function Position 1 LD ...
