Kia Cee'd: Button Engine Start System / Components and components location

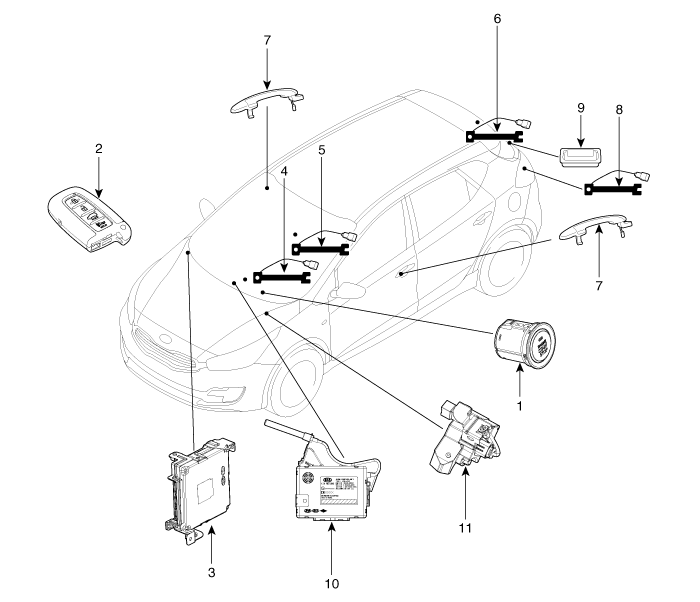

Component Location


1. Start Stop Button (SSB)
2. FOB key
3. Smart key unit
4. Interior antenna 1
5. Interior antenna 2
6. Trunk antenna
7. Door handle & door antenna
8. Bumper antenna
9. Tailgate open switch
10. BCM (Body Control Module)
11. ESCL (Electrical Steering Column Lock)

Button Engine Start System
...

Schematic diagrams
Circuit Diagram ...
