Kia Cee'd: Auto Lighting Control System / Components and components location

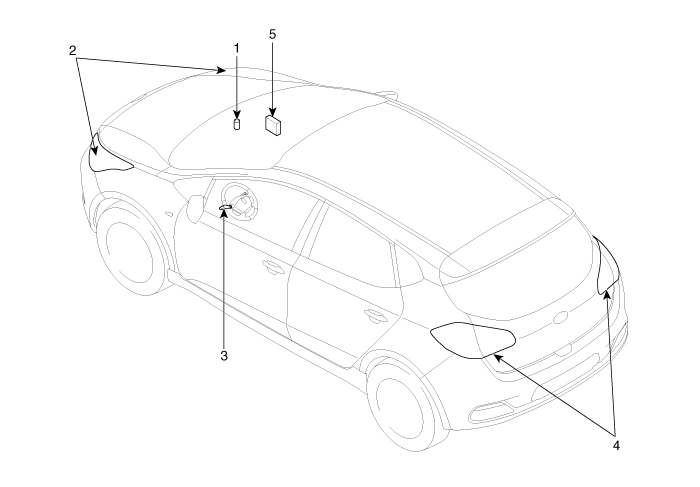

Component Location


1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. Body control module (BCM)

Specifications
Specifications   Items Specifications Rated voltage 5V Load Max. 1mA (When head lamp lighting) ...

Schematic diagrams
Circuit Diagram ...
