Component Location

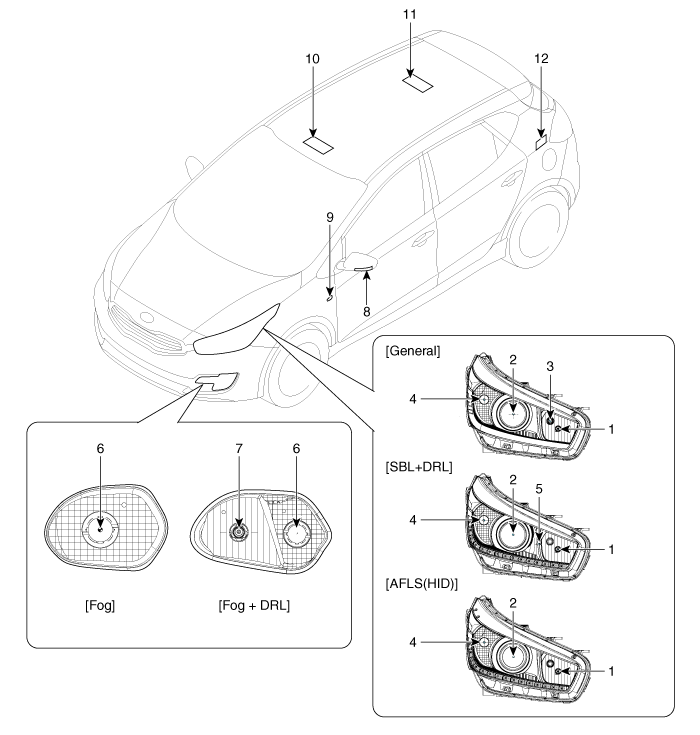

1. Head lamp(High)
2. Head lamp(Low)
3. Position lamp
4. Turn signal lamp
5. Static bending lamp
6. Front fog lamp
7. DRL
8. Side repeater lamp (Door mirror)
9. Side repeater lamp
10. Overhead console lamp
11. Room lamp
12. Luggage lamp

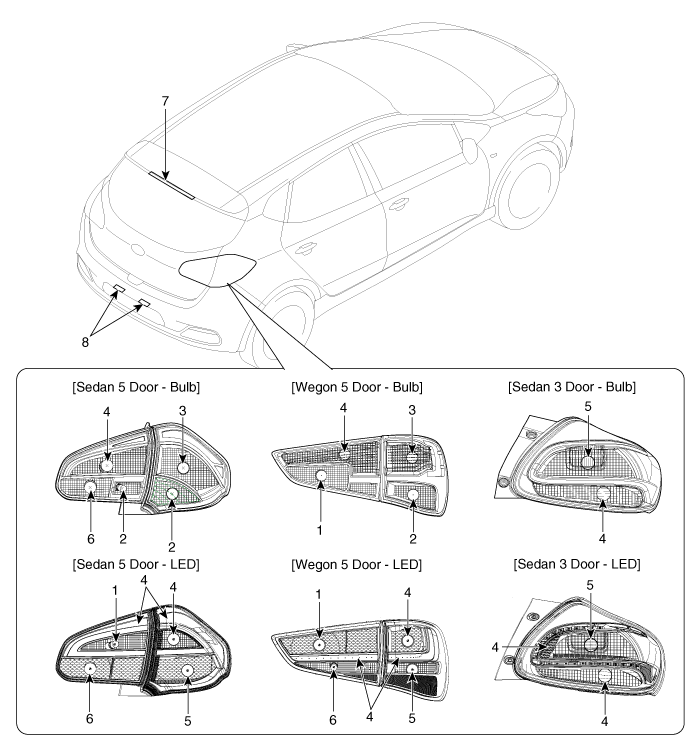

1. Backup lamp
2. Turn signal lamp
3. Tail/stop lamp
4. Tail lamp
5. Stop lamp
6. Rear fog lamp
7. High mounted stop lamp
8. License lamp

Specifications
Specification   Item Type Watt (W) Head lamp Low H7 55 D1S 3 ...

Troubleshooting
Troubleshooting 1. The lamp switch inputs can be checked using the GDS. 2. To check the input value of lamp switch, select option " ...
