Kia Cee'd: Rear Wiper/Washer / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Rear Wiper/Washer / Components and components location

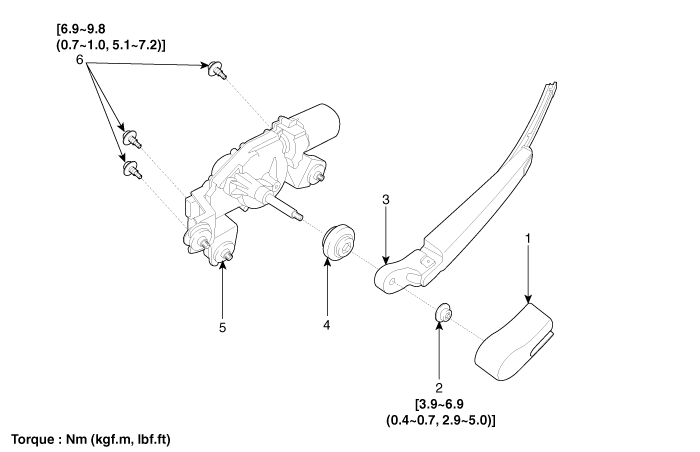

| Component Location |
| 1. Head cap 2. Rear wiper arm nut 3. Rear wiper arm & blade |
4. Grommat 5. Rear wiper motor 6. Rear wiper motor bolt |
Rear Wiper Motor Repair procedures
Inspection
Rear Wiper Motor
1.
Remove the 4P connector from the rear wiper motor.
2.
Connect battery positive (+) and negative (-) c ...
