Kia Cee'd: Windshield Deicer / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Windshield Deicer / Components and components location

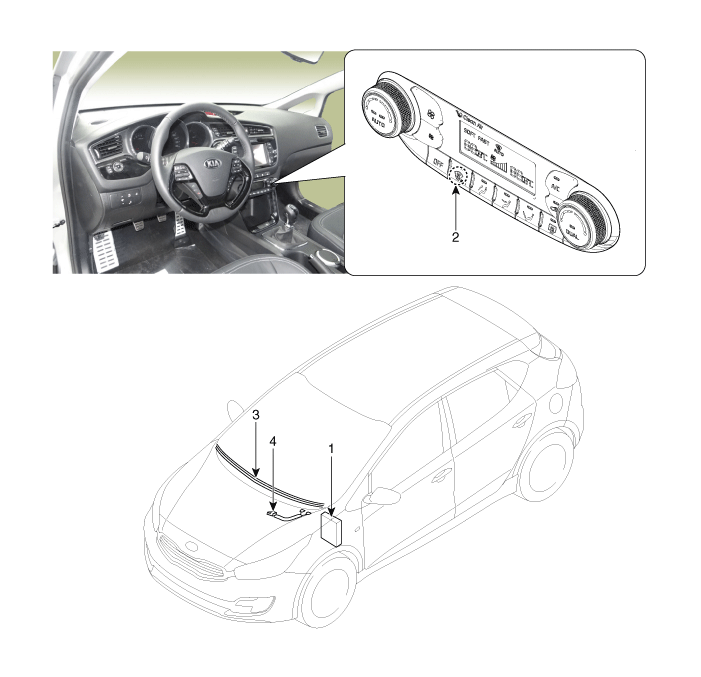

Component Location


1. Rear defogger relay (Built-in smart junction box)
2. Windshield deicer switch (Rear defogger switch)
3. Windshield deicer
4. Deicer connector
