Kia Cee'd: Power Windows / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Power Windows / Components and components location

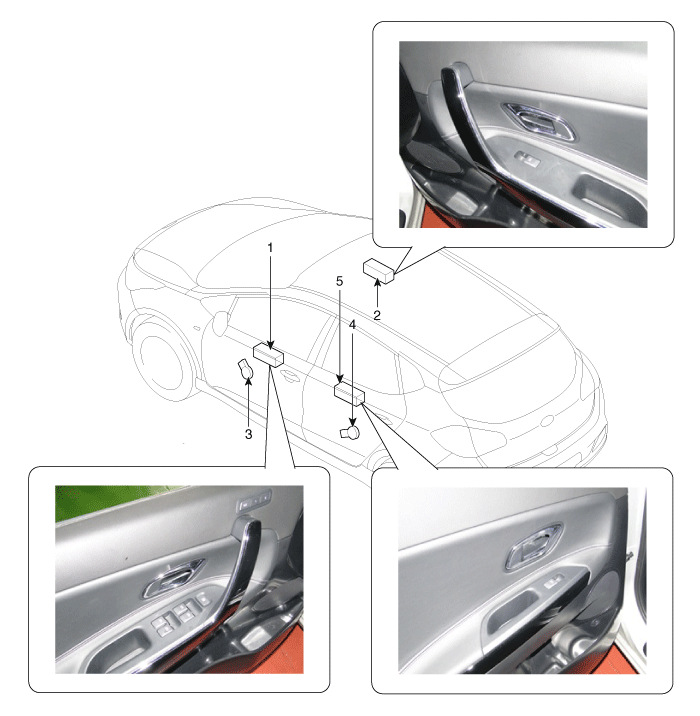

Component Location


1. Driver power window main switch
2. Passenger power window switch
3. Front window motor
4. Rear window motor
5. Rear window switch
