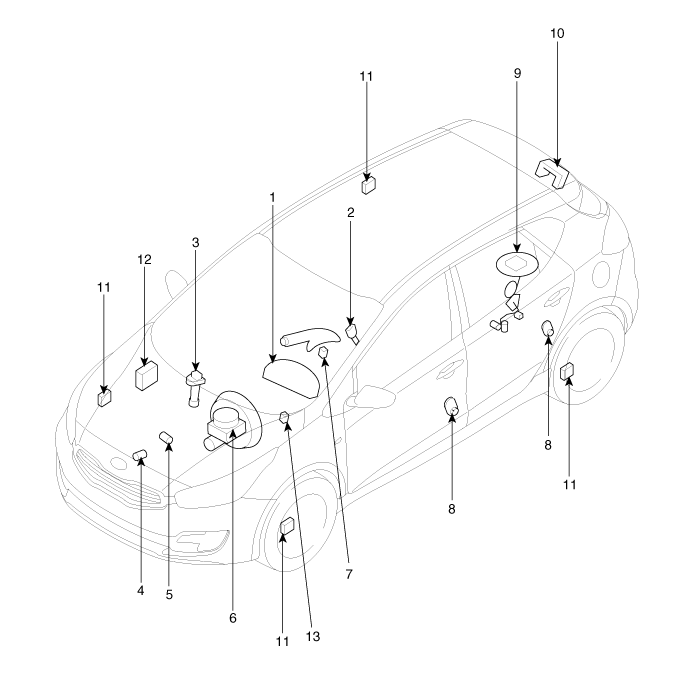

Component Location

1. Instrument cluster assembly
2. Seat belt switch
3. Vehicle speed sensor
4. Engine coolant temperature sensor
5. Oil pressure switch
6. Brake fluid level warning switch
7. Parking brake switch

8. Door switch
9. Fuel gauge sender
10. Tailgate open switch
11. Wheel speed sensor
12. ABS ECU
13. Active ECO switch

Troubleshooting

Troubleshooting Symptom Possible cause Remedy Tachometer does not operate Memory2 fuse (10A) blown C ...
