Component Location

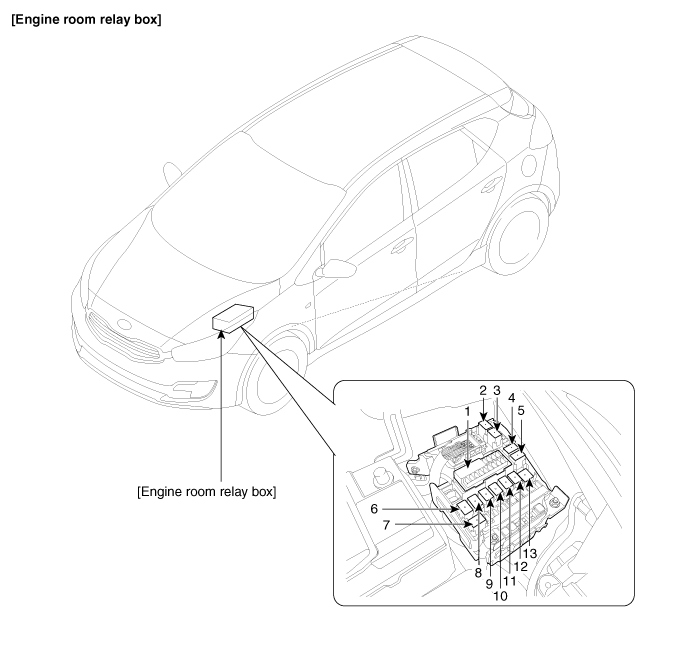

1. EMS box assembly
2. Cooling fan(Low) relay
3. Cooling fan(High) relay
4. ESS relay
5. Blower relay

6. Rear defogger relay
7. HAC relay
8. SSB4(IG2) relay
9. Front wiper relay
10. SSB3(IG1) relay

11. Start relay
12. SSB2(ACC) relay
13. PTC(Gasoline) / Fuel heater relay(Diesel)
