Kia Cee'd: Keyless Entry and Burglar Alarm / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Keyless Entry and Burglar Alarm / Components and components location

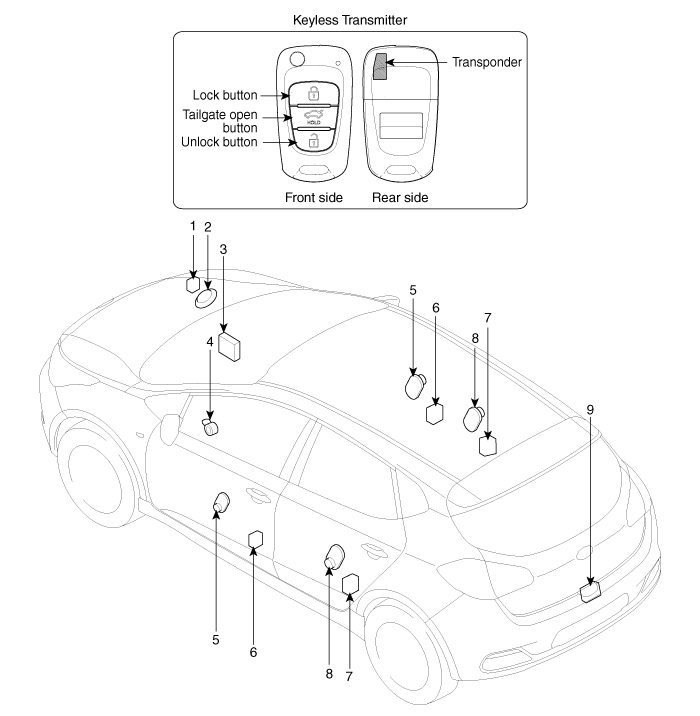

Component Location

1. Hood switch
2. Burglar horn
3. BCM and RF antenna
4. Key warning switch
5. Front door switch

6. Front door lock actuator & switch
7. Rear door lock actuator
8. Rear door switch
9. Tailgate open switch
