Kia Cee'd JD Service Manual / Body Electrical System / AVN System / Components and components location

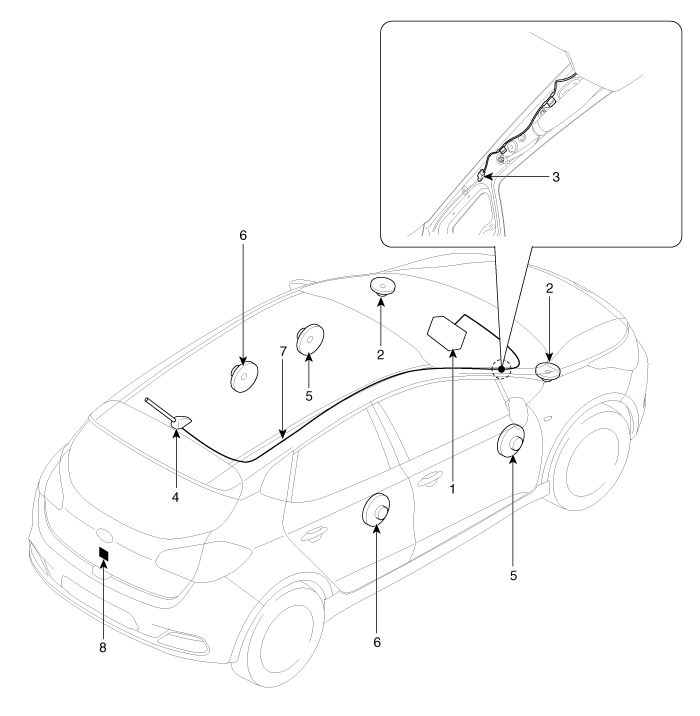

Components Location


1. AVN (A/V & Navigation head unit)
2. Tweeter speaker
3. Antenna cable connector
4. Roof antenna (GPS+Radio)
5. Front door speaker
6. Rear door speaker
7. Antenna feeder cable
8. Rear camera

Specifications
Specifications   Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space ...

Schematic diagrams
System Block Diagram ...
