Kia Cee'd JD Service Manual / Body Electrical System / Horn / Components and components location

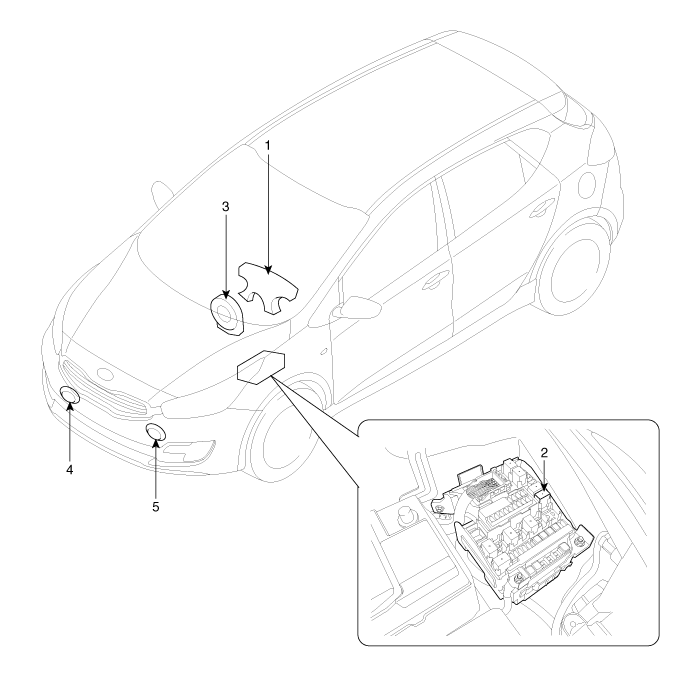

Component Location

1. Horn switch
2. Horn relay (Engine room compartment)
3. Clock spring

4. Horn (Low pitch)
5. Horn (High pitch)

Repair procedures

Inspection Test the horn by connecting battery voltage to the 1 terminal and ground the 2 terminal. The horn should make a sound. If the horn fails to make a sound, replace it. ...
