Kia Cee'd: Audio / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Audio / Components and components location

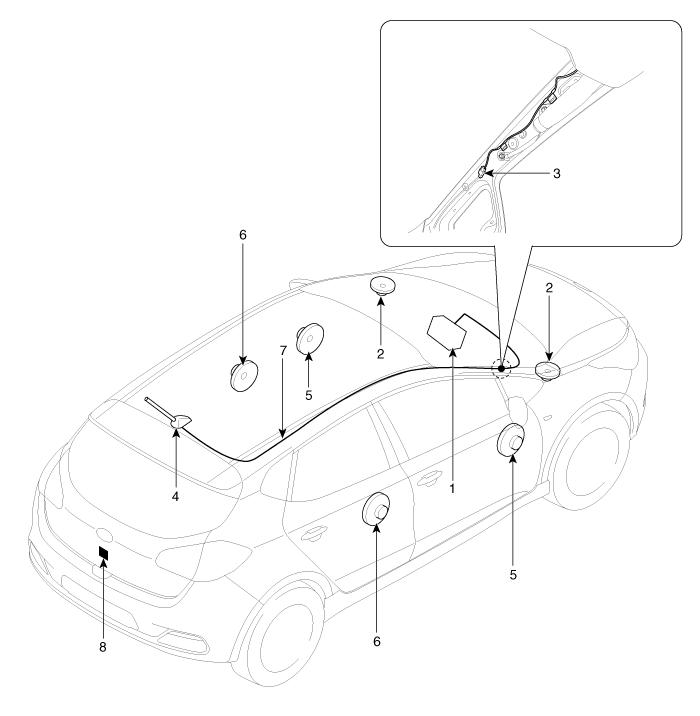

Component Location


1. Audio unit
2. Tweeter speaker
3. Antenna cable connector
4. Roof antenna (Radio)
5. Front door speaker
6. Rear door speaker
7. Antenna feeder cable
8. Rear camera

Specifications
Specification Audio Unit   Item Specification Model A type (RADIO/CDP/MP3/RDS) B type (RADIO/CDP/MP3/RDS) ...

Audio Unit Components and components location
Components ...
