Components (1)
[Rear seat back]
(5Door)

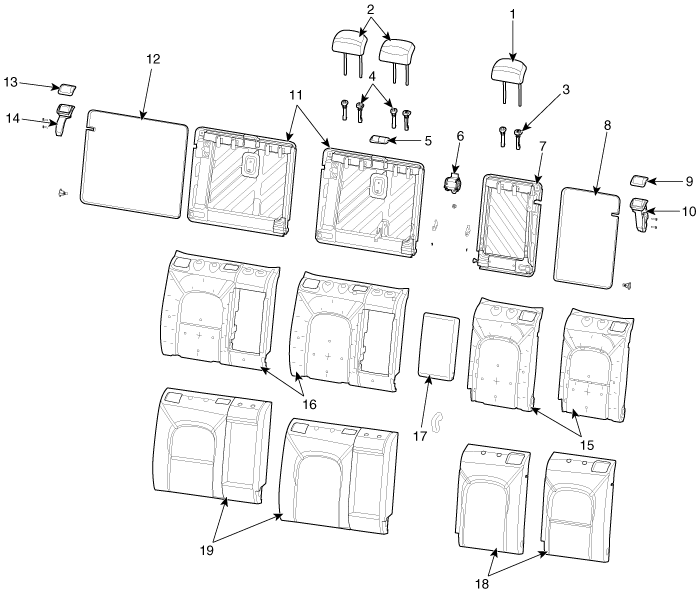

1. Rear seat headrest [LH]
2. Rear seat headrest [RH]
3. Rear seat headrest guide [LH]
4. Rear seat headrest guide [RH]
5. Rear seat belt outlet cover
6. Rear center seat belt retractor
7. Rear seat back structure [LH]
8. Rear seat back panel carpet [LH]
9. Rear seat latch cover [LH]
10. Rear seat latch assembly [LH]
11. Rear seat back structure [RH]
12. Rear seat back panel carpet [RH]
13. Rear seat latch cover [RH]
14. Rear seat latch assembly [RH]
15. Rear seat back pad [LH]
16. Rear seat back pad [RH]
17. Rear seat armrest assembly
18. Rear seat back cover [LH]
19. Rear seat back cover [RH]

Components (2)
[Rear seat cushion]
(5Door)

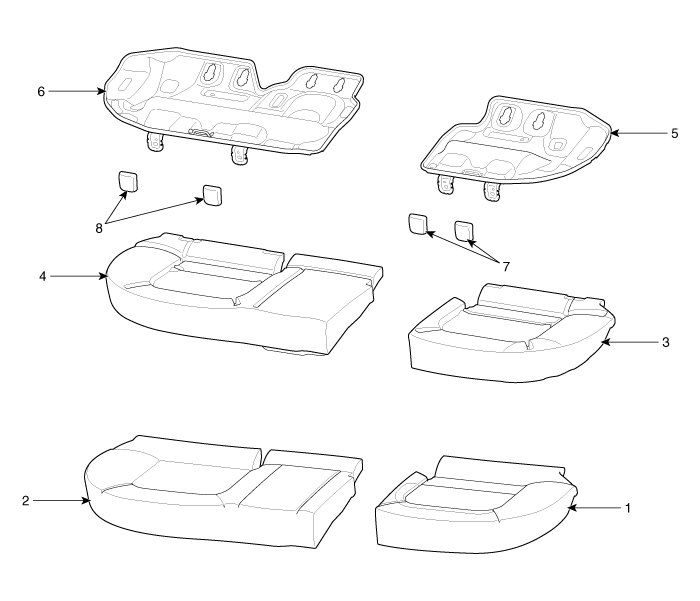

1. Rear seat cushion cover [LH]
2. Rear seat cushion cover [RH]
3. Rear seat cushion pad [LH]
4. Rear seat cushion pad [RH]
5. Rear seat cushion frame [LH]
6. Rear seat cushion frame [RH]
7. Rear seat cushion mounting cover [LH]
8. Rear seat cushion mounting cover [RH]

Components (3)
[Rear seat back]
(3Door)

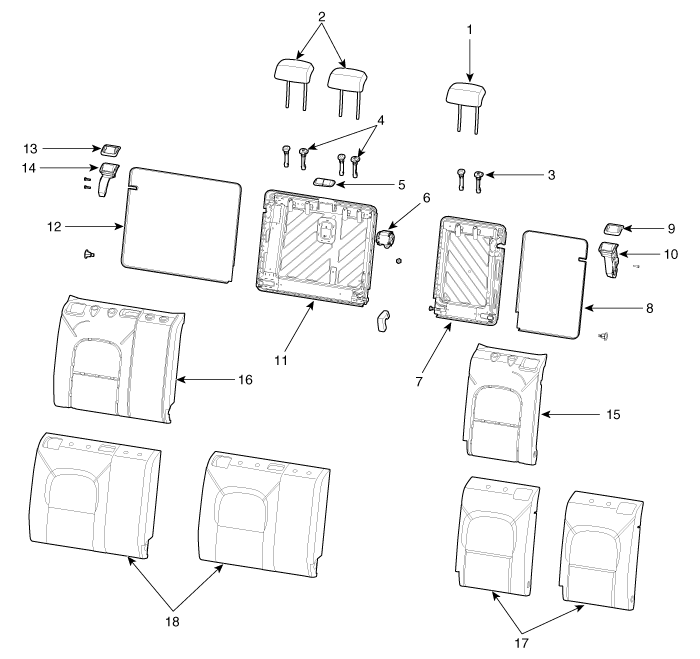

1. Rear seat headrest [LH]
2. Rear seat headrest [RH]
3. Rear seat headrest guide [LH]
4. Rear seat headrest guide [RH]
5. Rear seat belt outlet cover
6. Rear center seat belt retractor
7. Rear seat back structure [LH]
8. Rear seat back panel carpet [LH]
9. Rear seat latch cover [LH]
10. Rear seat latch assembly [LH]
11. Rear seat back structure [RH]
12. Rear seat back panel carpet [RH]
13. Rear seat latch cover [RH]
14. Rear seat latch assembly [RH]
15. Rear seat back pad [LH]
16. Rear seat back pad [RH]
17. Rear seat back cover [LH]
18. Rear seat back cover [RH]

Components (4)
[Rear seat cushion]
(3Door)

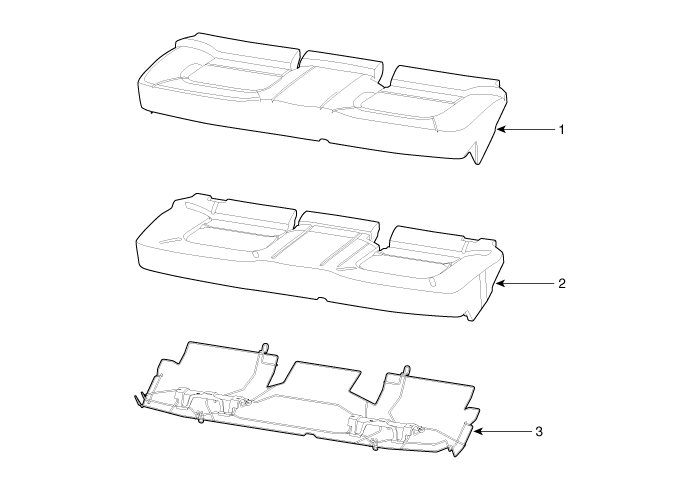

1. Rear seat cushion cover
2. Rear seat cushion pad
3. Rear seat cushion frame assembly

Rear Seat
...

Rear Seat Assembly Components and components location
Component Location   1. Rear seat cushion assembly 2. Rear seat back assembly ...
