Kia Cee'd: Panoramaroof / Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Panoramaroof / Components and components location

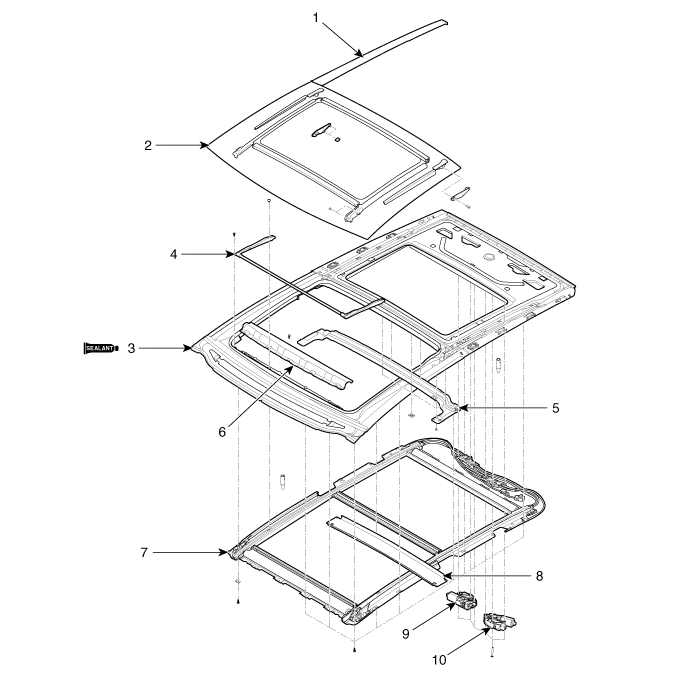

Components (1)

1. Roof side molding
2. Movable glass
3. Panoramaroof frame assembly
4. Wind deflector
5. Impact cross memeer upper assembly

6. Front cover
7. Mechanism assembly
8. Impact cross memeer lower assembly
9. Roller blind motor assembly
10. Movable glass motor assembly

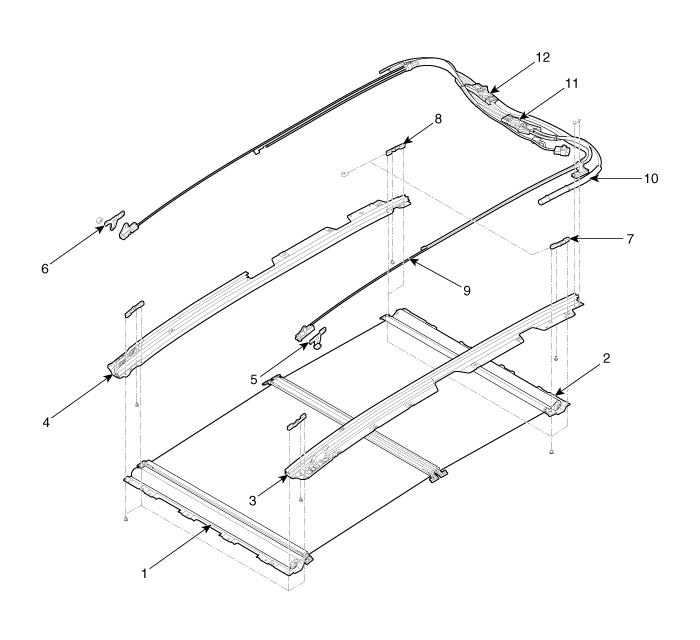

Components (2)

1. Front roller blind assembly
2. Rear roller blind assembly
3. Mechanism rail [LH]
4. Mechanism rail [RH]
5. Drive arm assembly [LH]
6. Drive arm assembly [RH]

7. Rear roller blind deflection [LH]
8. Rear roller blind deflection [RH]
9. Cable assembly
10. Harness assembly
11. Glass drive unit
12. Roller blind drive unit

Repair procedures

Adjustment Inspect Glass Alignment 1. Check for abnormal noise or bending during operation. 2. With the sunroof fully closed, check ...
