Kia Cee'd: Front Door / Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Front Door / Components and components location

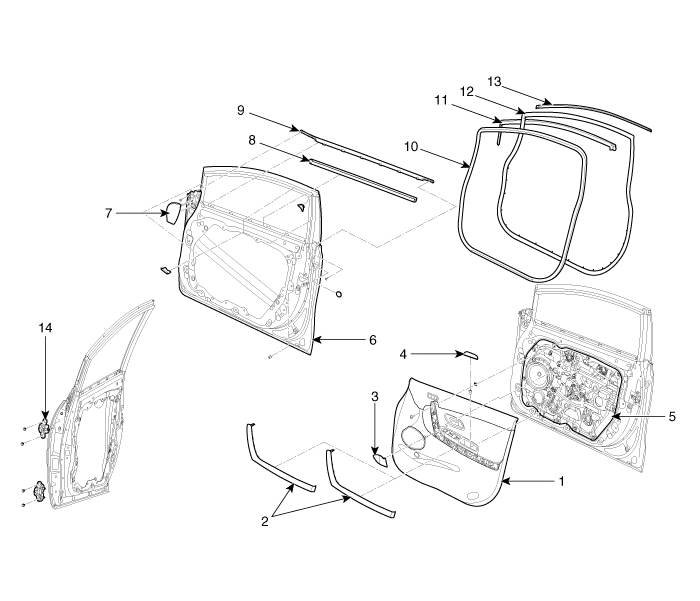

Components

1. Front door tirm
2. Front door grip handle cover
3. Front door inside handle housing
4. Front door pull handle cap
5. Front door module
6. Front door panel
7. Front door quadrant inner cover

8. Front door belt inside weatherstrip
9. Front door belt outside weatherstrip
10. Front door body side weatherstrip
11. Front door upper opening weatherstrip
12. Front door side weatherstrip
13. Front door frame moulding
14. Front door hinge
