Kia Cee'd: ABS(Anti-Lock Brake System) / Components and components location

Kia Cee'd JD Service Manual / Brake System / ABS(Anti-Lock Brake System) / Components and components location

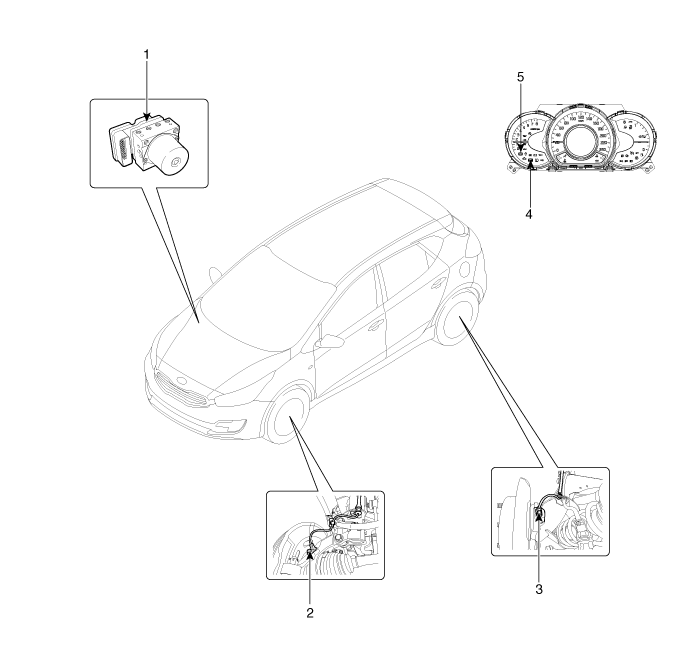

Components


1. ABS Control Module(HECU)
2. Front Wheel Speed Sensor
3. Rear Wheel Speed Sensor
4. ABS Warning lamp
5. EBD / Parking brake warning lamp
