Components [LHD]

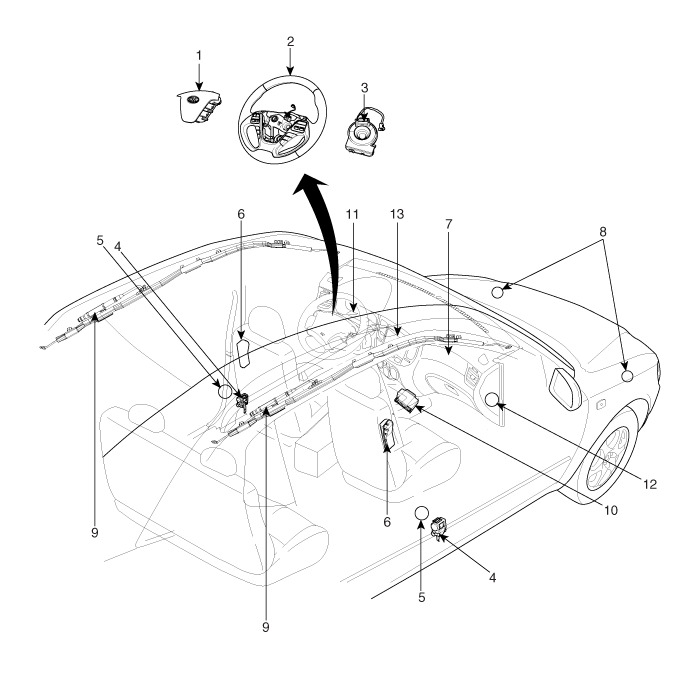

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front Impact Sensor (FIS)
9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module(SRSCM)
11. Airbag Warning Lamp
12. PAB ON/OFF switch
13. PAB ON/OFF lamp

Components [RHD]

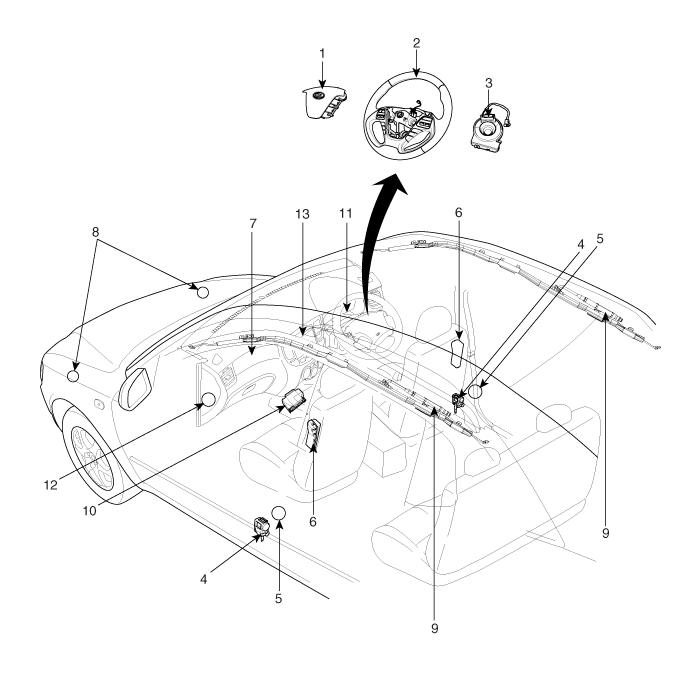

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front Impact Sensor (FIS)
9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module(SRSCM)
11. Airbag Warning Lamp
12. PAB ON/OFF switch
13. PAB ON/OFF lamp

Components Location

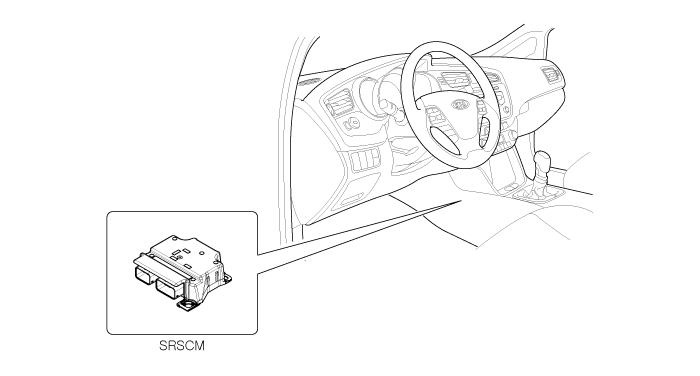

Supplemental Restraint System Control Module (SRSCM)

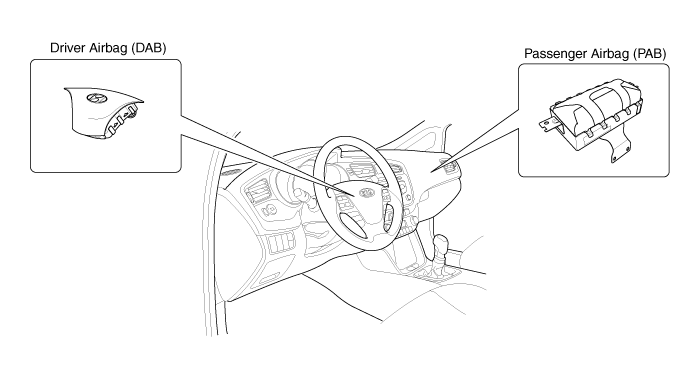

Driver Airbag (DAB) / Passenger Airbag (PAB)

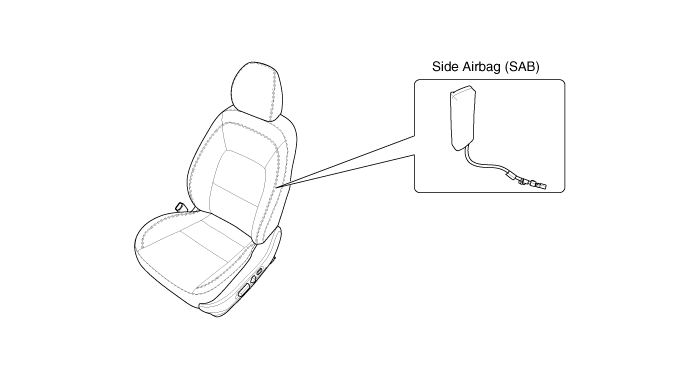

Side Airbag (SAB)

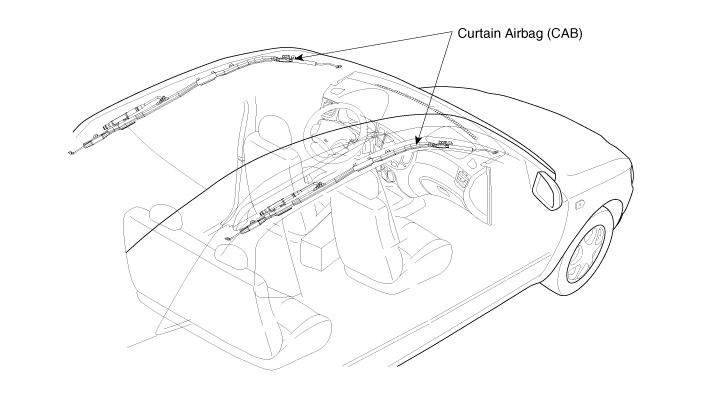

Curtain Airbag (CAB)

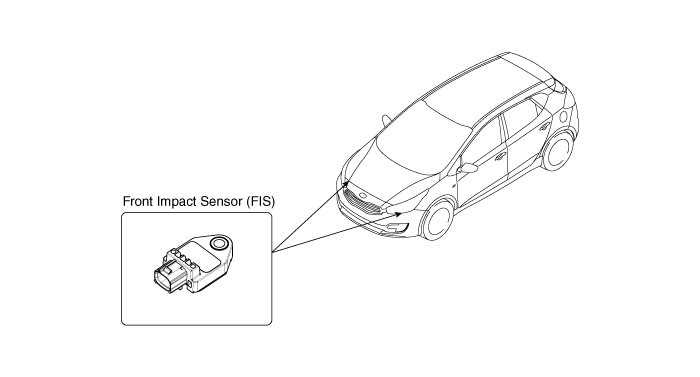

Front Impact Sensor (FIS)

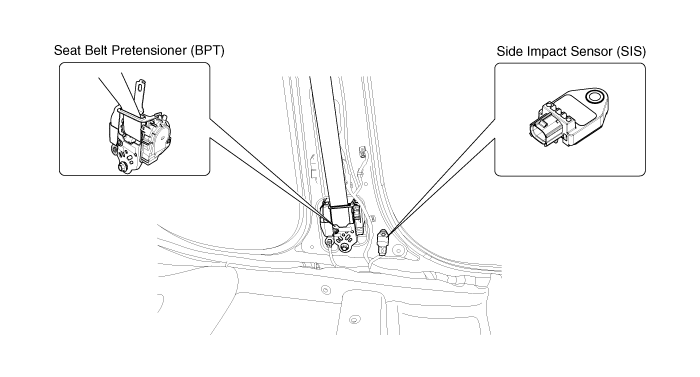

Side Impact Sensor (SIS)/ Seat Belt Pretensioner (BPT)

Repair procedures
Component Replacement After Deployment    Before doing any SRS repairs, use the GDS to check for DTCs. Refer to ...

SRSCM
...
