Kia Cee'd: Electric Power Steering / Components and components location

Kia Cee'd JD Service Manual / Steering System / Electric Power Steering / Components and components location

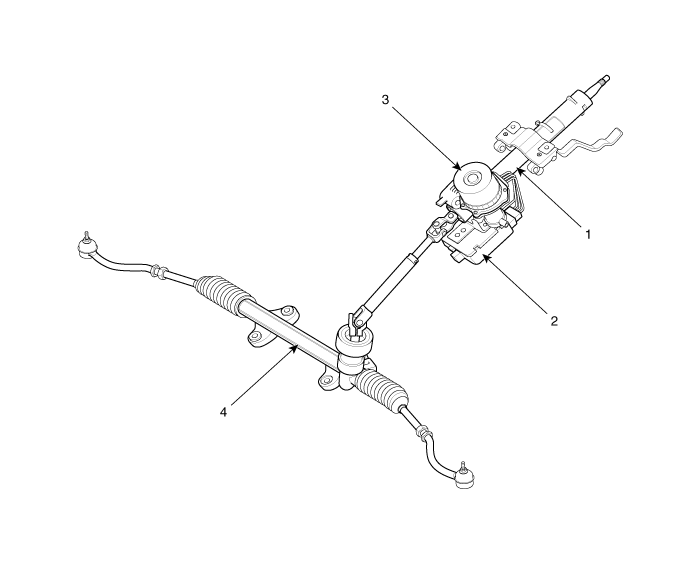

Components


1. Steering column shaft
2. ECU
3. Motor
4. Steering gear box

Description and operation
Description EPS (Electric power steering, Column assist type) system uses an electric motor to assist the steering force and it is an engine operation independent steering syste ...

Schematic diagrams
Schematic Diagrams MDPS Circuit Diagram Harness Connector   Connector Pin no Pin name Battery 1 ...
