Kia Cee'd: Steering wheel / Components and components location

Kia Cee'd JD Service Manual / Steering System / Steering wheel / Components and components location

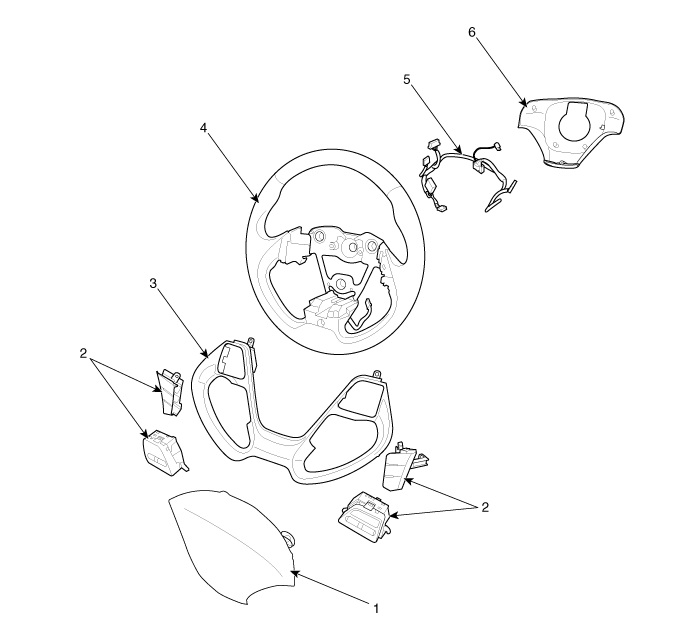

Component

1. Airbag module
2. Remote control assembly
3. Garnish

4. Steering wheel
5. Wiring
6. Lower cover

Repair procedures

Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering w ...
