Kia Cee'd: Front Axle Assembly / Front Hub / Knuckle / Components and components location

Kia Cee'd JD Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle / Components and components location

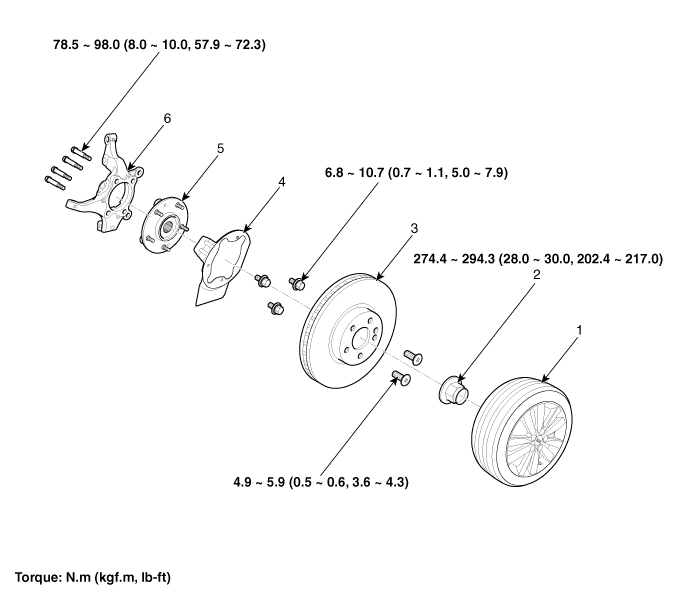

Components

1. Tire
2. Drive shaft coking nut
3. Brake disc

4. Dust cover
5. Wheel hub assembly
6. Knuckle
