Kia Cee'd: Clutch Master Cylinder / Components and components location

Kia Cee'd JD Service Manual / Clutch System / Clutch Master Cylinder / Components and components location

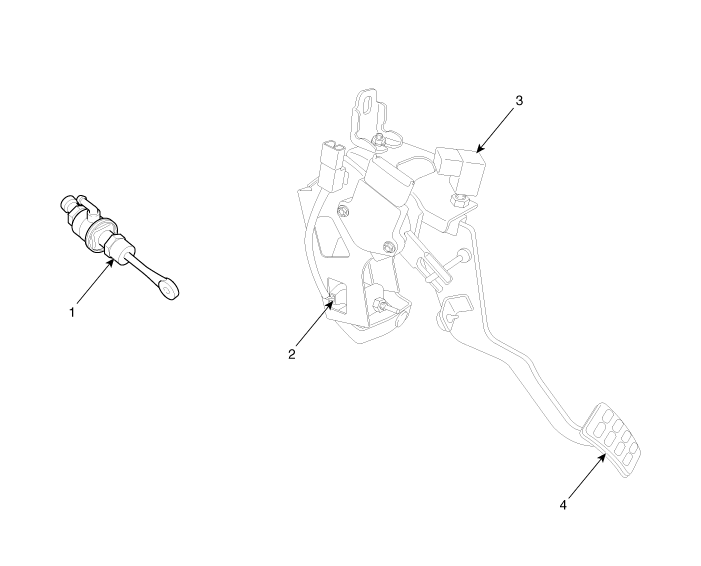

Components


1. Master cylinder
2. Ignition lock switch
3. Clutch switch
4. Pedal pad

Clutch Master Cylinder
...

Repair procedures
Removal 1. Separate the push rod (C) after remove the pin (A) and washer (B). 2. Remove the battery and battery tray. ...
