Kia Cee'd: Crash Pad / Cluster Fascia Panel Repair procedures

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel Repair procedures

Replacement

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Put on gloves to protect your hands.

•	Take care not to scratch the body surface.

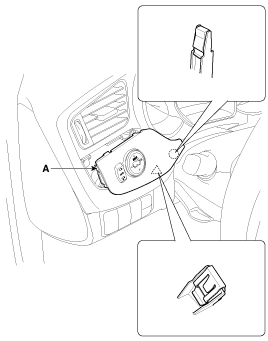

1.	Using a screwdriver or remover, remove the crash pad garnish [LH] (A).

2.	Disconnect the power door mirror switch connector (A).

3.	Using a screwdriver or remover, remove the steering column upper shroud panel (A).

4.	Using a screwdriver or remover, remove the cluster fascia cylinder panel (A).

5.	Using a screwdriver or remover, remove the center fascia panel (A).

6.	Disconnect the start/stop button connector (A).

7.	After loosening the mounting screws, then remove the center airvent duct (A).

8.	Disconnect the hazard switch connector (A) and trip switch connector (B).

9.	After loosening the mounting screws, then remove the side airvent duct [LH] (A).

10.	After loosening the mounting screws, then remove the cluster fascia upper panel (A).

11.

Install in the reverse order of removal.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips.
