Kia Cee'd: Maintenance / Climate control air filter

Kia Cee'd JD Owners Manual / Maintenance / Climate control air filter

Filter inspection

If the vehicle is operated in the severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced earlier. When you, the owner, replace the climate control air filter, replace it performing the following procedure, and be careful to avoid damaging other components.

Replace the filter according to the maintenance Schedule.

Filter replacement

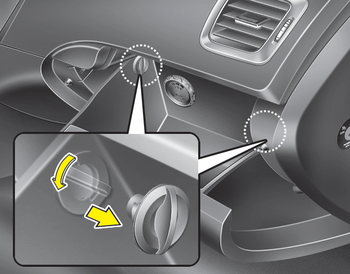

1. With the glove box open, remove the stoppers on both sides.

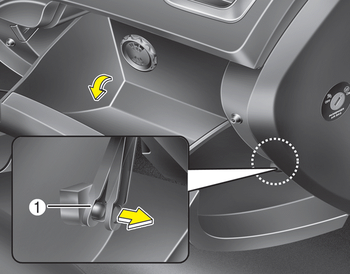

2. Open the glove box and remove the support strap (1).

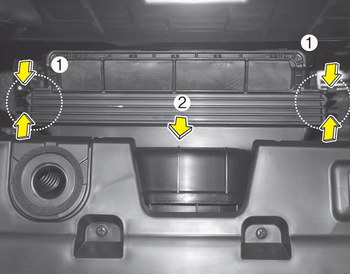

3. Remove the cover while pressing the lock on both side of the cover and remove the climate control air filter.

4. Replace the climate control air filter.

5. Reassemble in the reverse order of disassembly.

✽ NOTICE

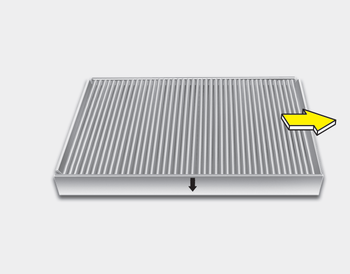

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
