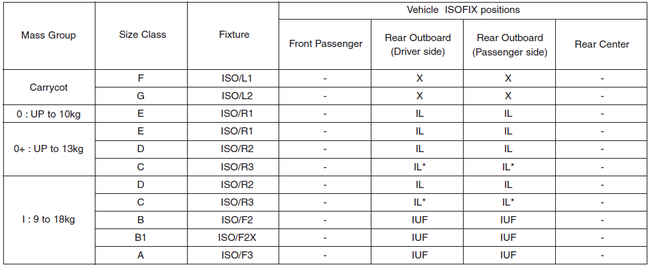

Kia Cee'd: Using a child restraint system / Child seat restraint suitability for vehicle ISOFIX positions - For Europe
IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
IL = Suitable for particular ISOFIX child restraints systems (CRS) given in the attached list. These ISOFIX CRS are those of the "specific vehicle", "restricted" or "semi-universal" categories.
X = ISOFIX position not suitable for ISOFIX child restraint system in this mass group and/or this size class.
IL* = ISO/R3 is able to be set up only at the foremost position of the front seats. But ISO/R3 is not able to be set up for 3 door vehicle.
Securing a child restraint system
with “ISOFIX” system and “Tether
Anchorage” system
ISOFIX is a standardised method of fitting
child seats that eliminates the need
to use the standard adult seat belt to
secure the seat in the vehicle. This
enables a much more secure and pos ...
Other information:
Kia Cee'd JD Owners Manual: Securing a child restraint seat with
“Tether Anchor” system
■ 3 Door and 5 Door
■ Wagon
Child restraint hook holders are located
on the transverse trim behind the rear
seats (3 Door and 5 Door) or the floor
behind the rear seats (Wagon).
This symbol indicates the
position of the tether anchor.
1. Route the child restraint seat strap
...
Kia Cee'd JD Service Manual: ISG (Idle Stop & Go) Components and components location
Components Location
1 . Battery sensor
2 . Brake Booster Vacuum Pressure Sensor (BBVPS)
3 . AGM battery
4 . DC DC converter
5 . ISG OFF switch
6. Alternator
7 . Starter
8. Neutral switch
9. Clutch switch
10. Door switch
11 ...
