Kia Cee'd: Interior Trim / Center Pillar Trim Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim Components and components location

Component Location

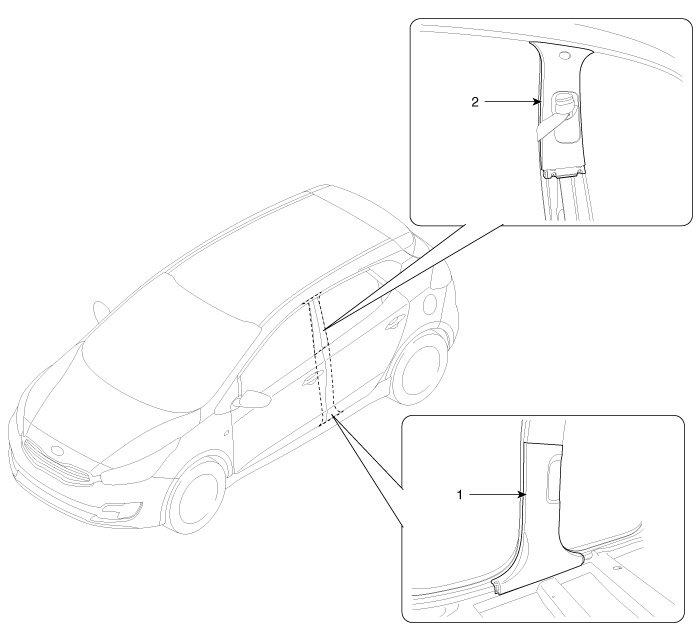

[5Door]


1. Center pillar lower trim
2. Center pillar upper trim

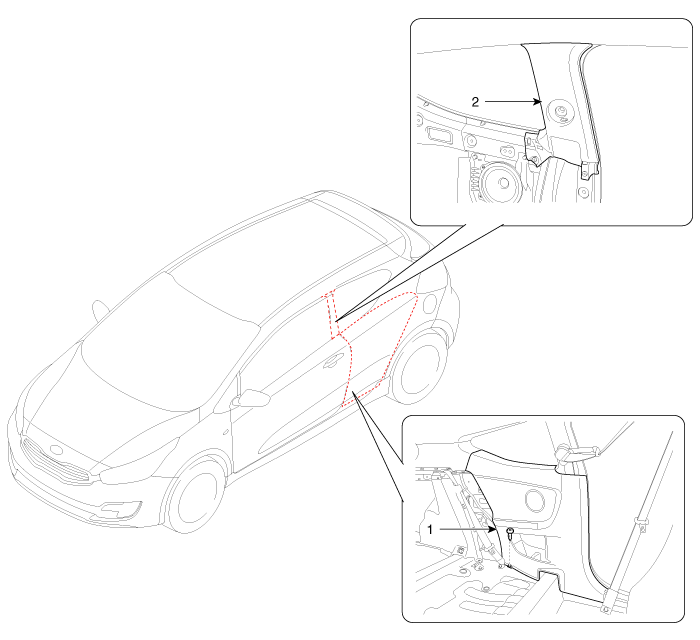

[3Door]


1. Rear inner outer trim
2. Center pillar upper trim

Front Pillar Trim Repair procedures
Replacement    • Put on gloves to protect your hands. ...

Center Pillar Trim Repair procedures
Replacement (5Door) [Center pillar lower trim]    • Put on gloves to protect you ...
