Kia Cee'd: Engine Control System / Camshaft Position Sensor (CMPS) Troubleshooting

Camshaft Position Sensor (CMPS) Description and operation

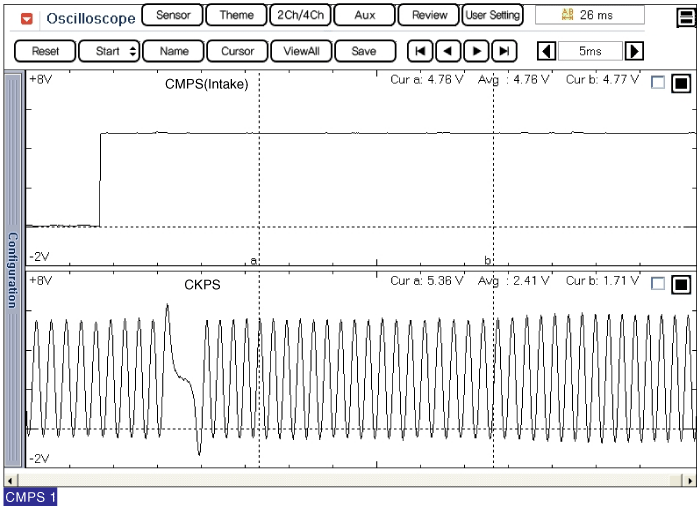

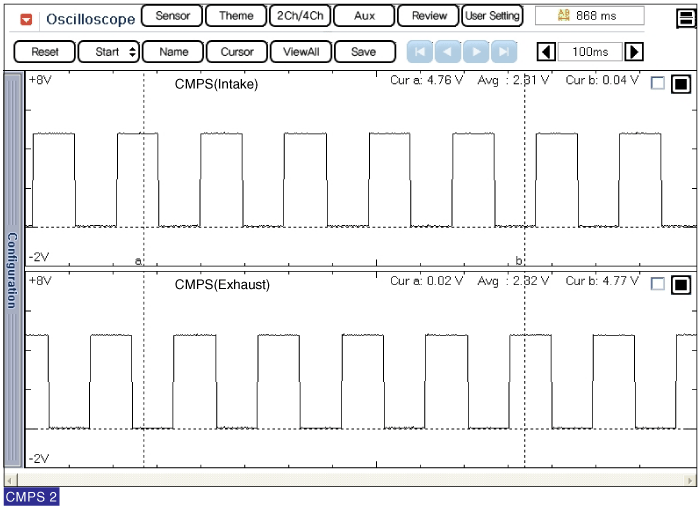

Description Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and ...

Camshaft Position Sensor (CMPS) Schematic diagrams

Circuit Diagram ...
