Kia Cee'd: Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic diagrams

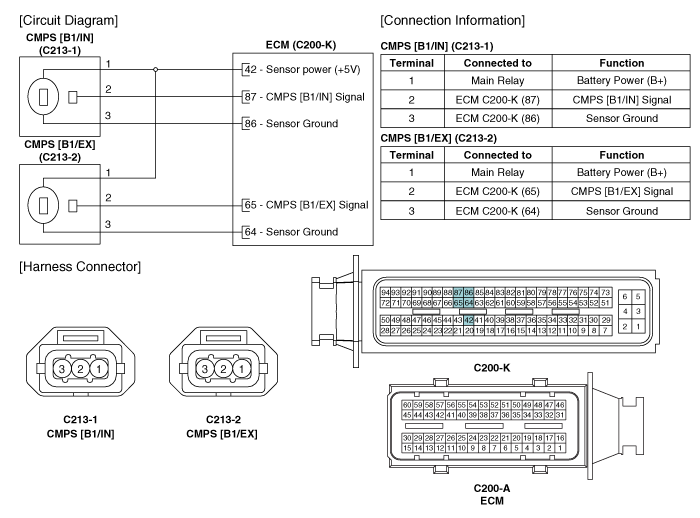

Circuit Diagram

Camshaft Position Sensor (CMPS) Troubleshooting
Signal Waveform ...

Camshaft Position Sensor (CMPS) Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” ...
