Kia Cee'd: Brake System / Brake Pedal Components and components location

Kia Cee'd JD Service Manual / Brake System / Brake System / Brake Pedal Components and components location

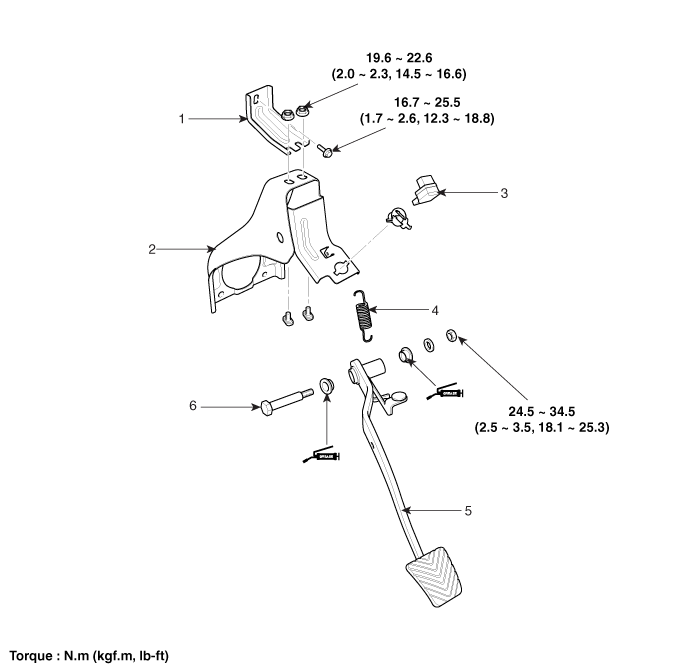

Components [LHD]


1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Brake pedal
6. Bolt

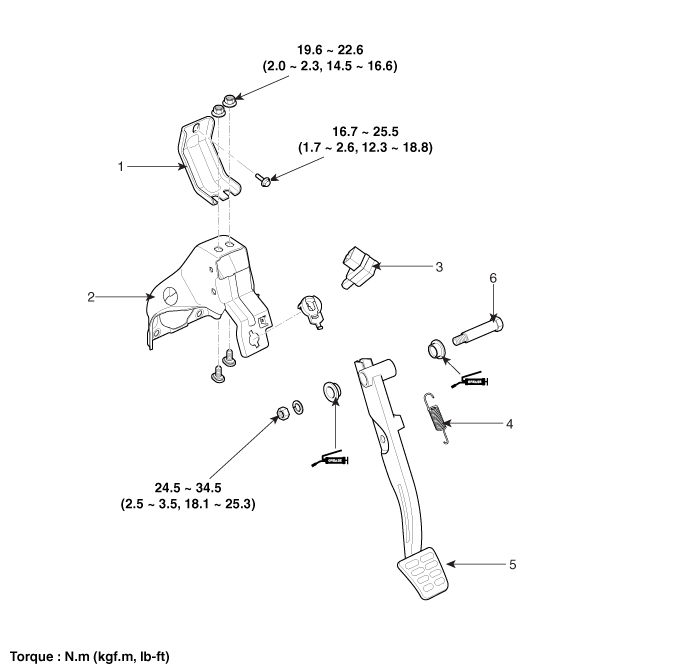

Components [RHD]


1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Brake pedal
6. Bolt

Brake Line Repair procedures
Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the mast ...

Brake Pedal Repair procedures
Removal [LHD] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. ...
