Kia Cee'd: Blower / Blower Unit Components and components location

Kia Cee'd JD Service Manual / Heating,Ventilation, Air Conditioning / Blower / Blower Unit Components and components location

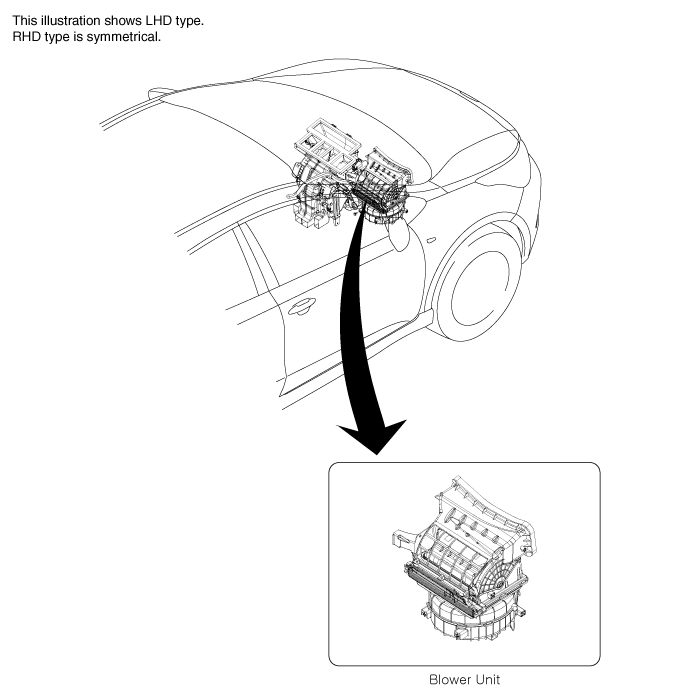

Component Location

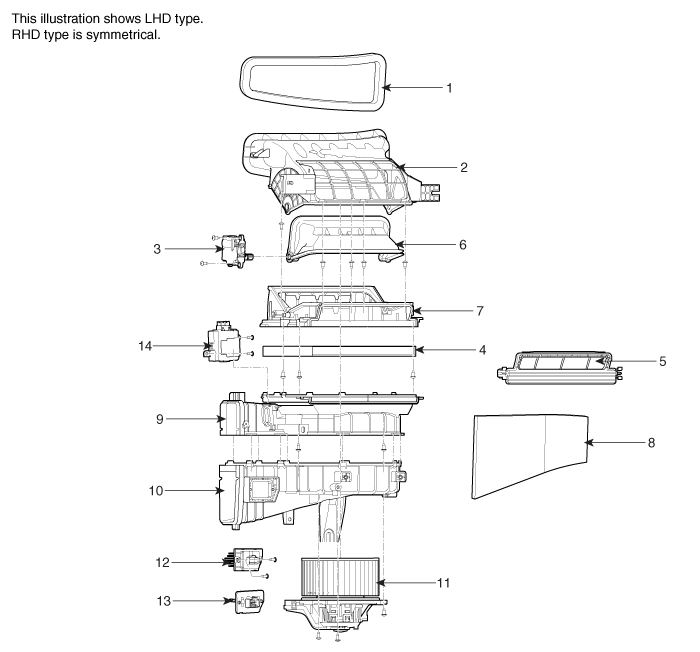

Components


1. Intake Seal
2. Intake Upper Case
3. Intake Actuator
4. Climate control air filter
5. Climate control air filter Cover
6. Intake Door
7. Intake Lower Case
8. NVH Pad
9. Blower Upper Case
10. Blower Lower Case
11. Blower Motor
12. Power Mosfet
13. Blower Resistor
14. Cluster Ionizer

Blower
...
