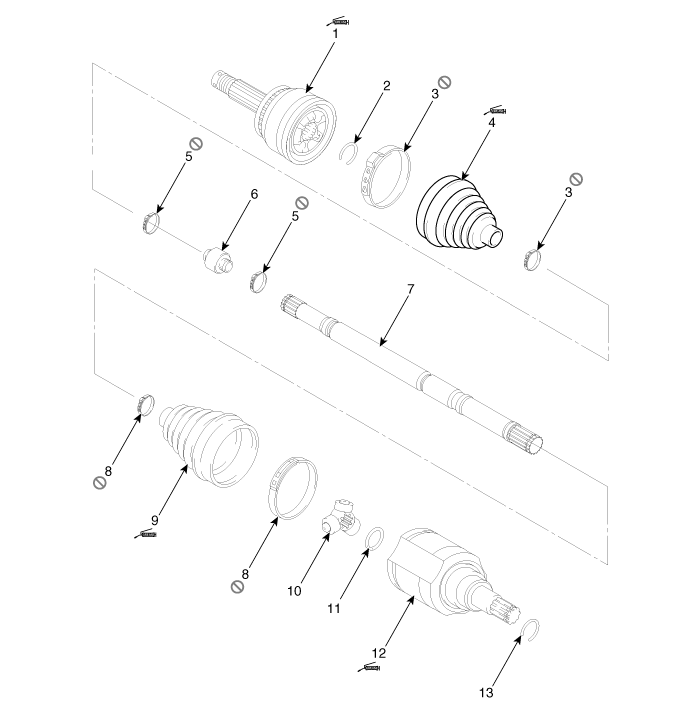

Components


1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing
13. Housing circlip

Dynamic Damper Repair procedures
Replacement 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint asse ...

BJ Boot Repair procedures
Replacement 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint asse ...
