Components

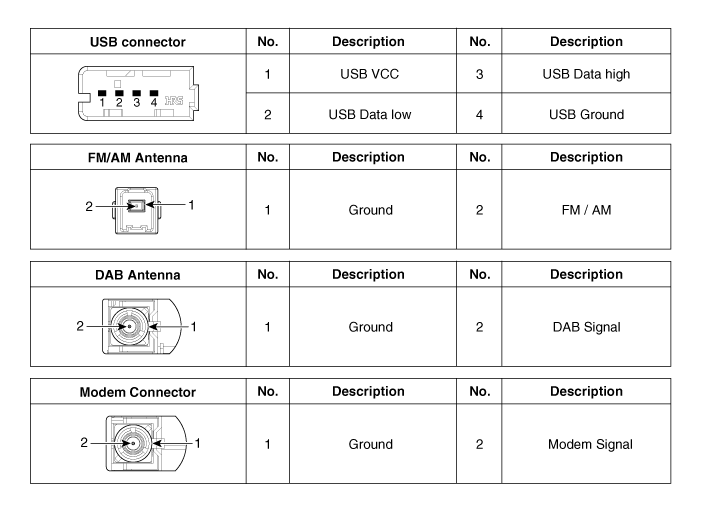

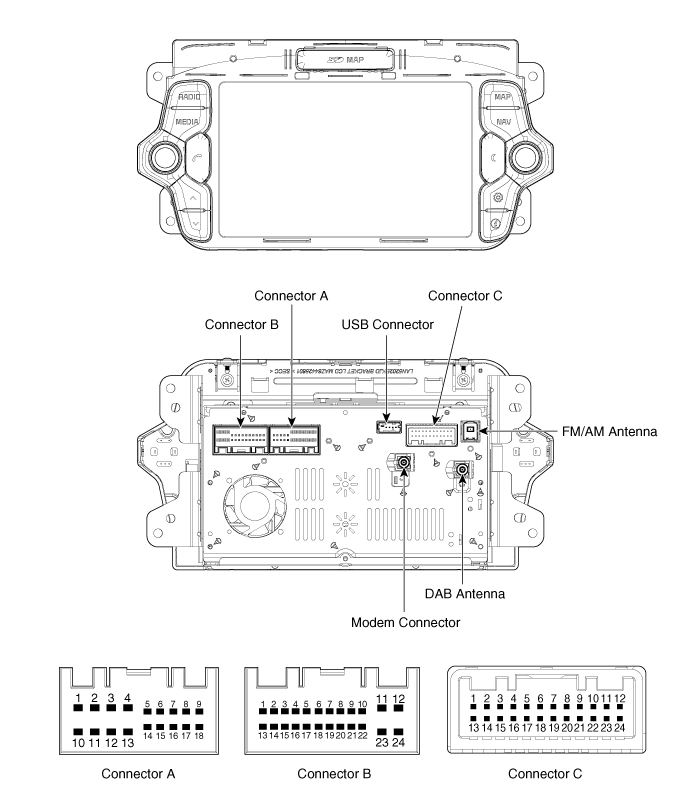

Connector Pin Information

No.
Connector A
Connector B
Connector C
1
Rear left speaker (+)
MM CAN High
-
2
Front left speaker (+)
-
-
3
Front right speaker (+)
-
-
4
Rear right speaker (+)
Steering wheel key
-
5
-
-

6
-
-
-
7
-
AUX video
-
8
Illumination (+)
AUX Audio R
-
9
Reverse
AUX Audio ground
-
10
Rear left speaker (-)
MIC Signal (+)
-
11
Front left speaker (-)
Battery (+)
-
12
Front right speaker (-)
Battery (+)
-
13
Rear right speaker (-)
MM CAN Low
-
14
-
Auto light
-
15
-
P Position
-
16
Door unlock status
Speed
-
17
Illumination (-)
Steering wheel key ground
-
18
ANT power
ACC
-
19

AUX Video ground
-
20
AUX Detect
-
21
AUX Audio left
Camera shield ground
22
MIC Signal (-)
Camera vidieo ground
23
Ground
Camera vidieo
24
Ground
Camera power

Description and operation
Description Limitations Of The Navigation system GPS Signal Reception State As the GPS satellite frequency is received/transmitted in straight lines, reception may not work ...

AVN Head Unit Repair procedures
Removal AVN Head Unit    • Take care not to scratch the center fascia panel and rela ...
