Kia Cee'd: Automatic climate control system / Automatic heating and air conditioning

The automatic climate control system is controlled by simply setting the desired temperature.

Soft mode

Fast mode

You can choose either the soft mode or fast mode to select the fan speed.

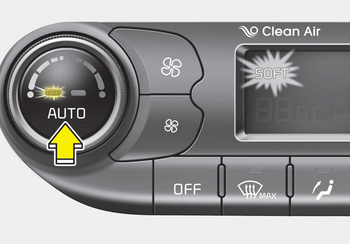

Soft mode : The wind blows gently.

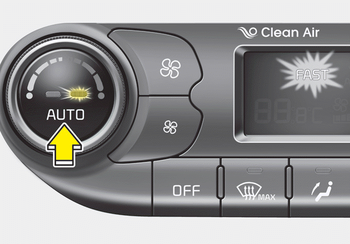

Fast mode : The wind blows heavier than the soft mode to reach the selected temperature fast.

Each time you press the AUTO button, the mode will change as follows:

Soft mode ↔ Fast mode

The Full Automatic Temperature Control (FATC) system automatically controls the heating and cooling system as follows:

1. Press the AUTO button.

The modes, fan speeds, air intake and air-conditioning will be controlled automatically according to the temperature setting.

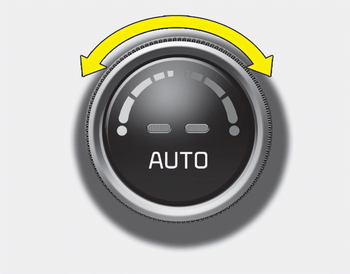

2. Turn the temperature control knob to set the desired temperature.

✽ NOTICE

✽ NOTICE

Placing any object over the sensor on the instrument panel may interfere with the heating and cooling system.

Automatic climate control system
1. Driver's temperature control knob 2. AUTO (automatic control) button 3. Fan speed control button (Higher speed) 4. Fan speed control button (Lower speed) 5. Climate control display 6. Air co ...

Manual heating and air conditioning
The heating and cooling system can be controlled manually by pressing buttons or turning knob(s) other than the AUTO button. In this case, the system works sequentially according to the order ...
